1
Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 EFI 4X4 - R07RH50AF/AR/AT
4
Parts Catalog

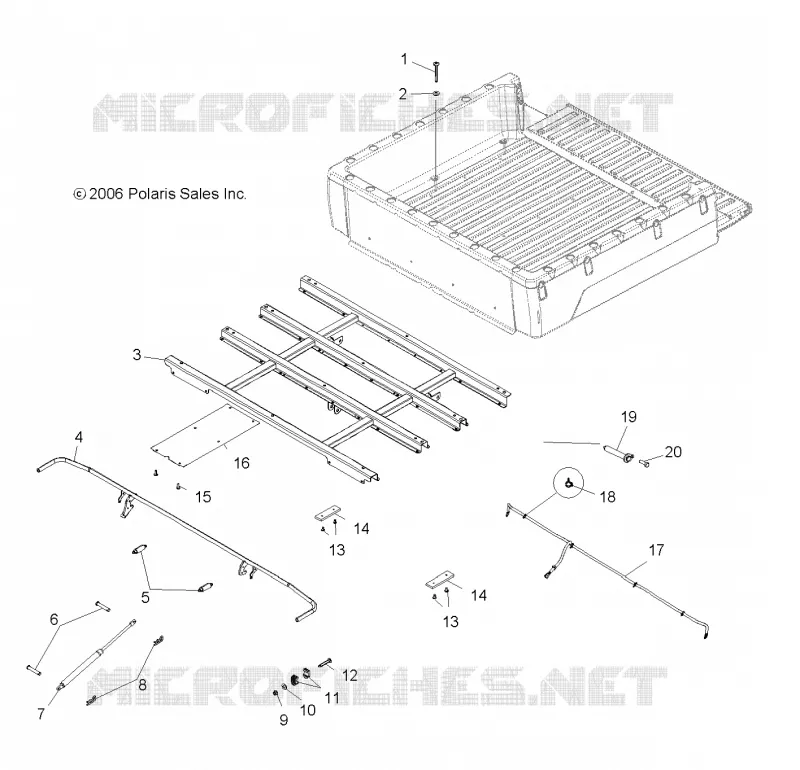

BOX MOUNTING
5
Parts Diagram
Parts Catalog
TRUNK
by
PARKING BRAKE (IF BUILT BEFORE 1/15/07)
BOX MOUNTING
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
15
1
SCR-1/4-20X1.50 TR/TX-M
7518375
$2,09 Unit Price incl. VAT
2
WASHER-.281X1.00X.051
7556329
$2,09 Unit Price incl. VAT
3
Box Support Short Black
1015308067
Not Available
4
Latch Box Black
1014963067
Not Available
5
SPRING-EXHAUST
7041687
$12,59 Unit Price incl. VAT
6
PIN-CLEVIS 1/2 X 1 3/4
7661878
$4,19 Unit Price incl. VAT
7
SHOCK DUMP BOX [BUILT 10/14/13 AND BEFORE]
7043187
$125,99 Unit Price incl. VAT
8
CLIP-HITCHPIN .148X3 1/16
7661067
$4,19 Unit Price incl. VAT
9
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
10
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
11
BUSHING-BOX LATCH
5434226
$7,34 Unit Price incl. VAT
12
Bolt Hex
7515319
$9,44 Unit Price incl. VAT
13
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
14
Bumper Box Base
5412321
Not Available
15
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
16
Shield Heat Exhaust (If buit after 12/27/04)
5249127
Not Available
17
Harness Cargo Box
2410877
$120,74 Unit Price incl. VAT
18
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
19
Pin Box Hinge
1013511067
1016695-329
$19,94 Unit Price incl. VAT
20
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
