1
Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 EFI 4X4 - R07RH50AF/AR/AT
4
Parts Catalog

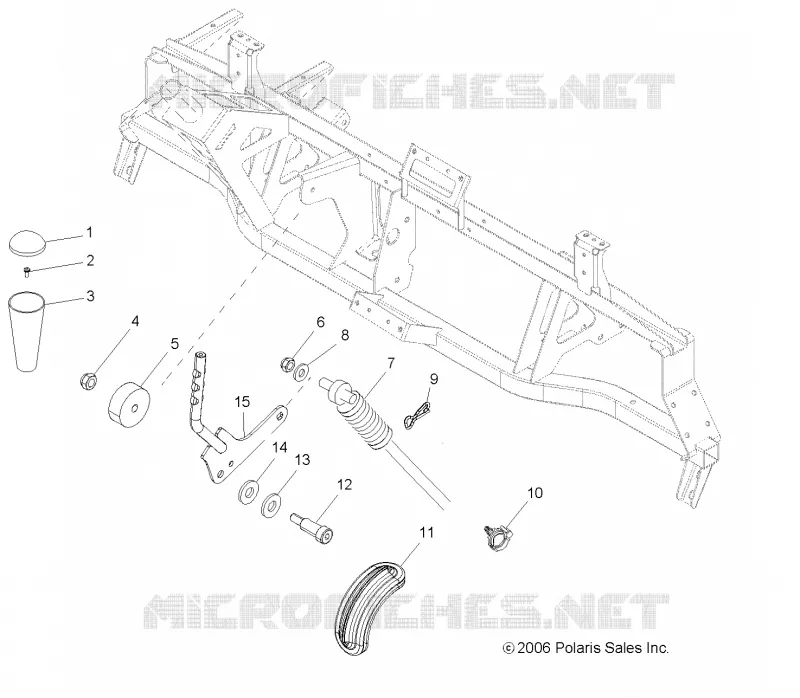

GEAR SELECTOR
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
TRANSMISSION
GEAR SELECTOR
14
15
1
COVER SHIFTER
5412079
Not Available
2
SCR-#10-24X5/8PN/TR-RDTORX-Y
7517756
$2,09 Unit Price incl. VAT
3
KNOB GEAR SILECTOR SHIFT
5411007
3233198
$68,24 Unit Price incl. VAT
4
NUT
7542344
$7,34 Unit Price incl. VAT
5
Bearing Shifter
5133749
Not Available
6
NUT-NYLOCK M8X1.25-Y
7547144
$6,29 Unit Price incl. VAT
7
Cable Shifter
7081209
$278,24 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
PIN CLIP 14MM
7661140
$2,09 Unit Price incl. VAT
10
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
11
Grommet Gear Shift
5412154
Not Available
12
BOLT SHOULDER
7517745
$15,74 Unit Price incl. VAT
13
WASHER-.390X.940X.060 FL-Y
7555976
$7,34 Unit Price incl. VAT
14
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
15
Lever Shifter
1542114
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
