Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 EFI 4X4 - R07RH50AF/AR/AT
4
Parts Catalog
REAR GEARCASE (BUILT BEFORE 1/15/07)
5

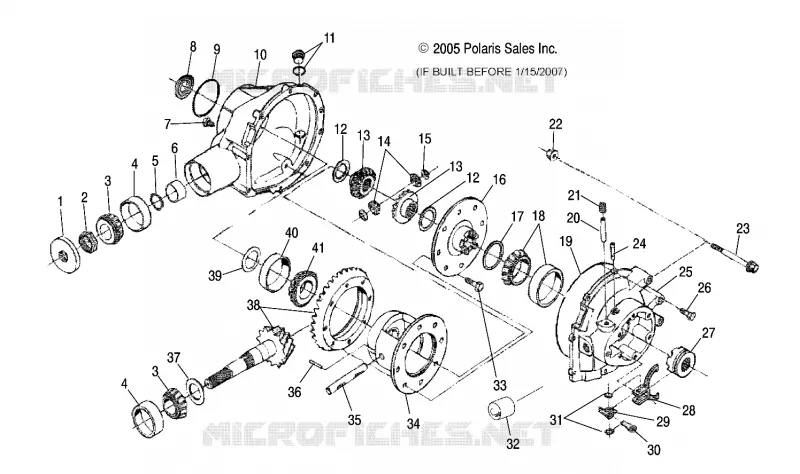

Parts Diagram
Parts Catalog
REAR GEARCASE (BUILT AFTER 1/15/07)
by
REAR GEARCASE (BUILT BEFORE 1/15/07)
-
-
-
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
-
KIT DIFFERENTIAL SHIM
2875333
Not Available
-
Asm. Hypoid Gear
1341514
Not Available
-
Kit Shim Pinion
2875332
Not Available
1
SEAL OIL PINION
3610102
$57,74 Unit Price incl. VAT
2
Nut Pinion
7547243
Not Available
3
BEARING CONE PINION
3514432
$89,24 Unit Price incl. VAT
4
BEARING CUP PINION
3514431
$41,99 Unit Price incl. VAT
5
Spacer Pinion
5133761
Not Available
6
Spacer Bearing Pinion
5133762
$10,49 Unit Price incl. VAT
7
PLUG DRAIN
5133731
$20,99 Unit Price incl. VAT
8
Seal Oil
3610117
3610146
$25,19 Unit Price incl. VAT
9
O-Ring
5412339
$41,99 Unit Price incl. VAT
10
Housing Half Carrier
5134905
Not Available
11
PLUG FILL/CHECK
5133736
$47,24 Unit Price incl. VAT
12
WASHER THRUST SIDE
7556346
$41,99 Unit Price incl. VAT
13
GEAR DIFF SIDE
5134904
Not Available
14
GEAR DIFF PINION MATE
5134903
Not Available
15
WASHER PINION THRUST
7556347
$17,84 Unit Price incl. VAT
16
COVER CASE HALF DIFF
5134906
$556,49 Unit Price incl. VAT
17
Spacer Bearing Differential
5133756
Not Available
18
Bearing Tapered Roller [Incl. 23]
3514435
$208,73 Unit Price incl. VAT
19
O-RING HOUSING HALVES
5412338
$17,84 Unit Price incl. VAT
20
Shaft Pivot Shift Yoke
5133755
Not Available
21
Screw Set
7518171
Not Available
22
Nut Hex Flanged Hitch
7547242
$3,98 Unit Price incl. VAT
23
Bolt Hex Flanged Hitch
7518175
Not Available
24
VENT TUBE
7052334
Not Available
25
Cover Half Carrier
5133764
Not Available
26
BOLT FLANGE HEX
7518172
$13,64 Unit Price incl. VAT
27
Gear Clutch
5134907
5137196
$278,24 Unit Price incl. VAT
28
YOKE SHIFT
5133759
$272,99 Unit Price incl. VAT
29
SPRING SHIFT LEVER
7042209
$13,64 Unit Price incl. VAT
30
LEVER SHIFT
5133760
$18,89 Unit Price incl. VAT
31
SPRING SHAFT RETURN
7042210
$15,74 Unit Price incl. VAT
32
SOLENOID DIFF LOCK
2410368
$593,24 Unit Price incl. VAT
33
BOLT HEX RING GEAR
7518173
$9,44 Unit Price incl. VAT
34
CASE HALF DIFF
5134901
$682,49 Unit Price incl. VAT
35
PIN DIFF CROSS
5134902
$146,99 Unit Price incl. VAT
36
PIN DIFF ROLL
7661164
$10,49 Unit Price incl. VAT
37
Spacer Pinion
5133763
Not Available
38
Asm. Hypoid Gear
1332356
$1 097,24 Unit Price incl. VAT
39
Spacer Bearing Differential
5133766
Not Available
40
BEARING DIFF [CUP]
3514433
$108,14 Unit Price incl. VAT
41
BEARING CONE DIFF
3514434
$208,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
