1
Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 EFI 4X4 - R07RH50AF/AR/AT
4
Parts Catalog

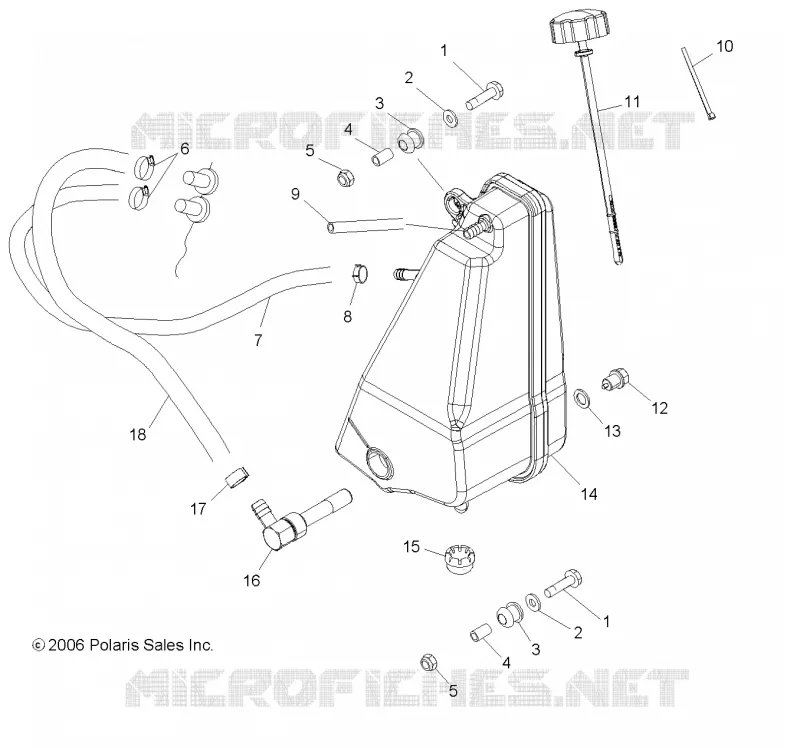

OIL TANK
5
Parts Diagram
Parts Catalog
FRONT GEARCASE
by
PARKING BRAKE PEDAL
OIL TANK
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
BOLT HEX
7512163
$7,34 Unit Price incl. VAT
2
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
3
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
4
Bushing
5333204
$41,99 Unit Price incl. VAT
5
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
6
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
7
LINE BREATHER 3/8 ID.
8450073600
$136,49 Unit Price incl. VAT
8
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
9
Line Breather
5412366
$73,49 Unit Price incl. VAT
10
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
11
Dipstick Oil Tank
5434307
$52,49 Unit Price incl. VAT
12
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
13
WASHER
5850135
$5,76 Unit Price incl. VAT
14
Tank Oil
1261654
$414,74 Unit Price incl. VAT
15
GROMMET
5412507
$12,59 Unit Price incl. VAT
16
Screen Oil Filter 90 Degree
7052326
$83,99 Unit Price incl. VAT
17
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
18
Line Oil
8450096100
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
