1
Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 EFI 4X4 - R07RH50AF/AR/AT
4
Parts Catalog
PARKING BRAKE (IF BUILT AFTER 1/15/07)
5
Parts Diagram
Parts Catalog
REAR WHEEL
by
THROTTLE BODY

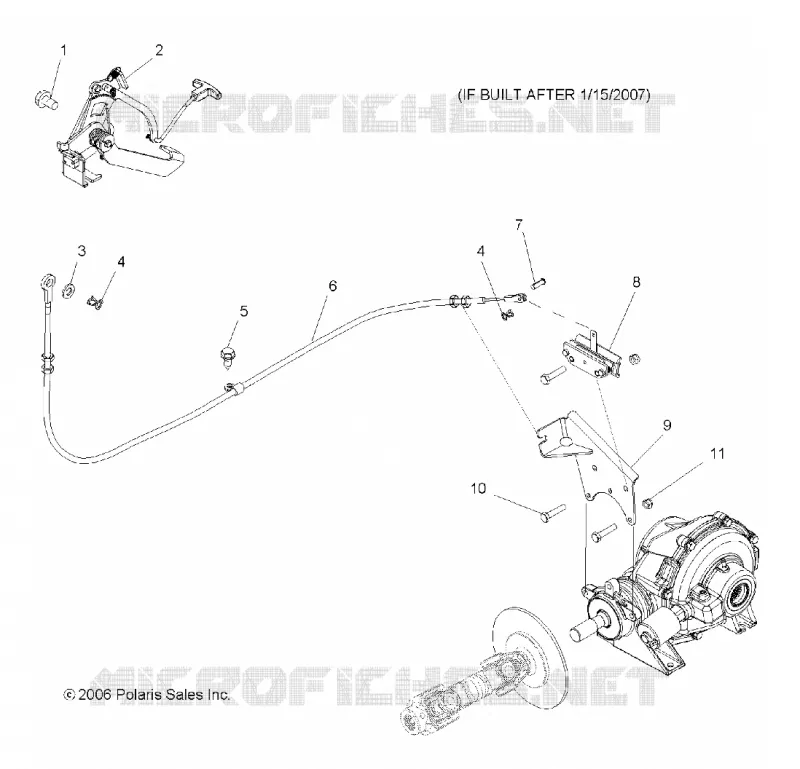

PARKING BRAKE (IF BUILT AFTER 1/15/07)
1
2
3
4
4
5
6
7
8
8
8
8
8
9
10
11
1
Screw [If built to 7/07/03]
7515547
Not Available
2
Asm. Park Brake [Incl. 1-11 15-17]
1910816
Not Available
3
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
4
PIN CLIP 14MM
7661140
$2,09 Unit Price incl. VAT
5
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
6
Cable Park Brake
7081435
$194,24 Unit Price incl. VAT
7
PIN-CLEVIS 1/4X5/8 - Z
7661830
$7,34 Unit Price incl. VAT
8
KIT COMPLETE P/B
2203255
$178,49 Unit Price incl. VAT
8
Asm. Caliper Park Brake
1910833
1911786
$262,49 Unit Price incl. VAT
8
KIT MOUNT P/B
2203254
$80,84 Unit Price incl. VAT
8
KIT BRAKE PAD
2203147
2203148
$62,25 Unit Price incl. VAT
8
KIT BRAKE PAD AND SHIMS
2203148
$62,25 Unit Price incl. VAT
9
BRACKET PARK BRAKE CALIPER MOUNT
5250390
$83,99 Unit Price incl. VAT
10
Bolt Flange
7518342
$6,29 Unit Price incl. VAT
11
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
