PARKING BRAKE PEDAL
5

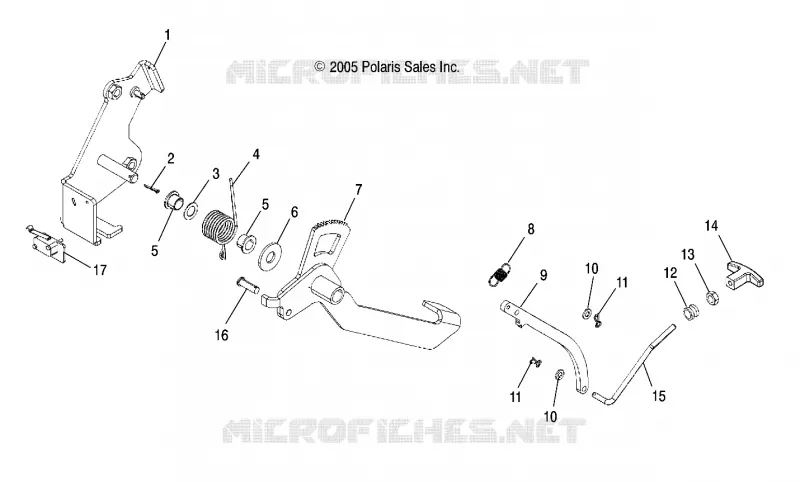

Parts Diagram
Parts Catalog
OIL TANK
by
PROP SHAFT, FRONT
PARKING BRAKE PEDAL
-
1
2
3
4
5
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
-
Asm. Park Brake [Incl. 1-11 15-17]
1910816
Not Available
1
Mount Park Brake Black
1014724067
Not Available
2
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
3
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
4
Spring Lever Return
7043073
Not Available
5
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
6
WASHER
7555804
$7,34 Unit Price incl. VAT
7
Lever Park Black
1014723067
Not Available
8
Spring Catch Parking Brake
7042057
Not Available
9
Latch Park Brake
5248150
Not Available
10
WASHER-.5X.262X.06(16 GA)-Y
7555827
$7,34 Unit Price incl. VAT
11
PIN CLIP 14MM
7661140
$2,09 Unit Price incl. VAT
12
GROMMET
5410437
$5,24 Unit Price incl. VAT
13
NUT-M6X1 HX R.HAND-Y
7546701
$7,34 Unit Price incl. VAT
14
Handle Parking Brake
7081013
$88,19 Unit Price incl. VAT
15
Rod Handle Park Release
5248157
$62,99 Unit Price incl. VAT
16
PIN-5/16X1 CLEVIS
7661106
$12,59 Unit Price incl. VAT
17
Switch Sensor Park Brake
4011093
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
