1
Engine displacement
500
2
Year
2007
3
Trim
RANGER 500 EFI 4X4 - R07RH50AF/AR/AT
4
Parts Catalog

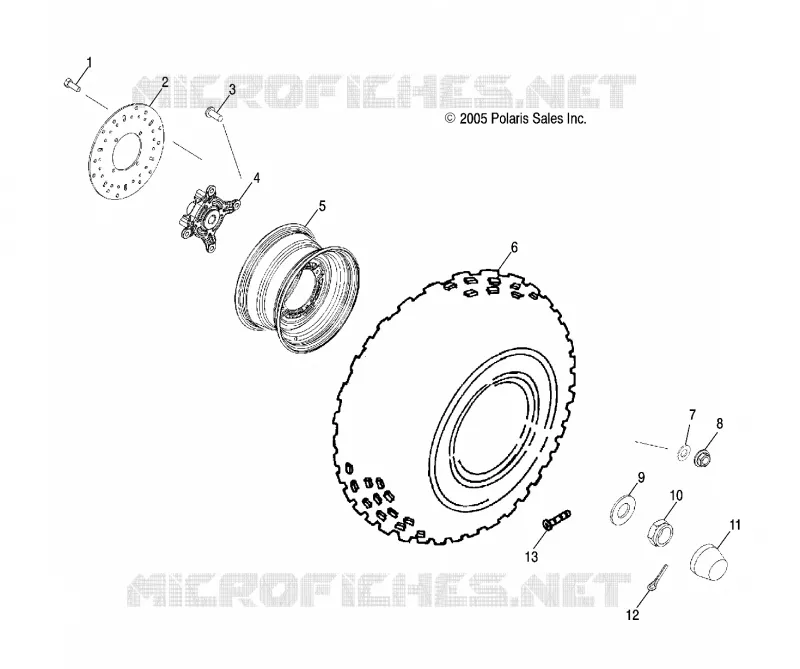

FRONT WHEEL
5
Parts Diagram
Parts Catalog
THROTTLE
by
REAR WHEEL
FRONT WHEEL
1
2
3
4
5
6
7
8
9
10
11
12
13
1
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
2
DISC-BRAKE 8.95 OD .158
5244314
$141,74 Unit Price incl. VAT
3
STUD(10)
7515513
$2,09 Unit Price incl. VAT
4
HUB WHEEL
5135207
$167,99 Unit Price incl. VAT
5
WELD-RIM FRONT 12X6 10GA BLK
1520796067
1523451-067
$168,30 Unit Price incl. VAT
6
TIRE F.AT25X10-12 (25x10-12)
5411397
5419306
$180,06 Unit Price incl. VAT
7
WASHER-.385X.88X.075 FL-Y THR
7556242
$4,19 Unit Price incl. VAT
8
NUT-HXFL-3/8-24 B ZTB P-A
7542459
$3,14 Unit Price incl. VAT
9
WASHER
7556004
$13,64 Unit Price incl. VAT
10
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
11
DUSTCOVER HUB
5411164
5413427
$52,49 Unit Price incl. VAT
12
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
13
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
