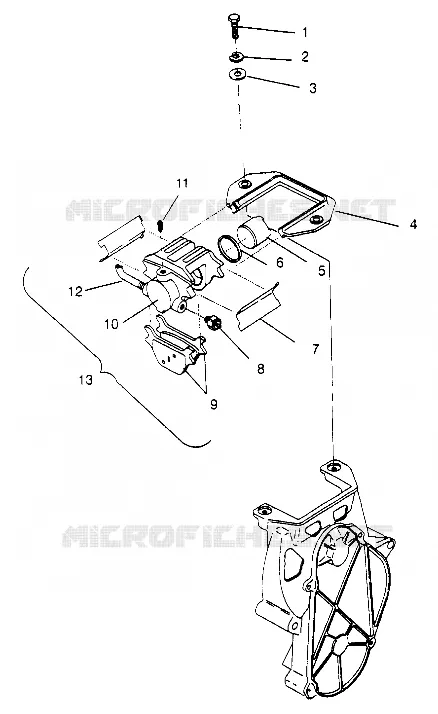

BRAKE 500 CARB 0952764 (4929192919B005)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 500 CARB 0952764 (4929192919A013)
by
COOLING SYSTEM 500 CARB 0952764 (4929192919B006)
BRAKE 500 CARB 0952764 (4929192919B005)
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
1
SCR-HH-3/8-16X1.75 GR5 ZY3
7515521
$7,34 Unit Price incl. VAT
2
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
3
WASHER
7555806
$1,56 Unit Price incl. VAT
4
KIT CALIPER BRKT.
1930733
Not Available
5
KIT PISTON SEAL (Incl. 9)
1930734
Not Available
6
SEAL
2200466
$62,99 Unit Price incl. VAT
7
KIT CLIP SPRING (Qty. 2)
2200467
Not Available
8
SWITCH STOPLIGHT
4110135
Not Available
9
KIT BRAKEPAD HD.TYP.61 Substituted by 2201020 (Incl. 7)
2200594
Not Available
9
KIT BRAKE PAD Substituted by 2201019 (Incl. 7)
2200604
Not Available
10
KIT CALIPER(AIR-COOLED) (Incl. 8 9 & 14)
1930737
Not Available
11
KIT INLET
1930735
$14,58 Unit Price incl. VAT
12
LINE BRAKE
1930755
Not Available
13
CALIPER BRAKE Substituted by 1930825 (Incl. 1-8)
1930701
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
