1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog

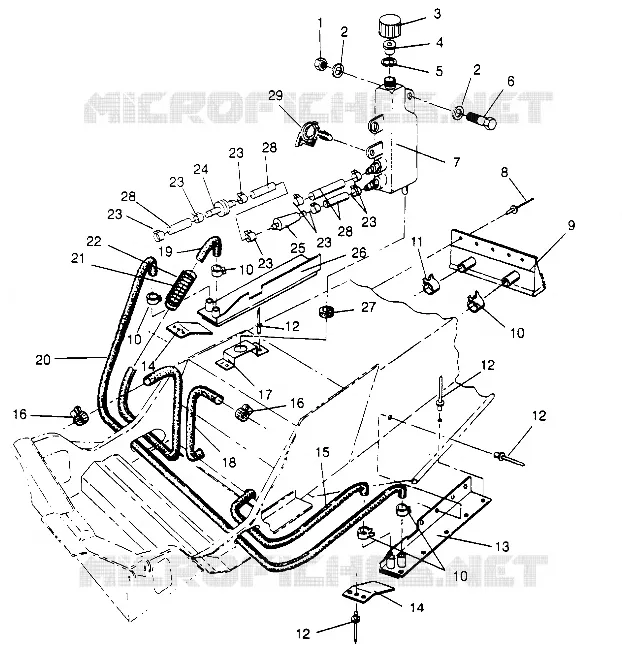

COOLING SYSTEM 500 CARB 0952764 (4929192919B006)
5
Parts Diagram
Parts Catalog
BRAKE 500 CARB 0952764 (4929192919B005)
by
CHAINCASE ASSEMBLY 500 CARB 0952764 (4929192919B007)
COOLING SYSTEM 500 CARB 0952764 (4929192919B006)
1
2
2
3
4
5
6
7
8
9
10
10
10
10
11
12
12
12
12
13
14
14
15
16
16
17
18
19
20
21
22
23
23
23
23
23
23
24
25
26
27
28
28
28
29
1
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
2
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
3
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
4
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
5
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
6
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
7
BOTTLE O#FLOW W/FITTING
5431733
$73,49 Unit Price incl. VAT
8
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
9
EXCHANGER WELD CTR.
2511225
Not Available
10
CLAMP HOSE SIL 27MM.(10) Substituted by 7080841 (Silver)
7080562
7080841
$13,64 Unit Price incl. VAT
11
CLAMP HOSE GRY 35MM.(10) Substituted by 7080844 (Gray)
7080564
7080844
$19,94 Unit Price incl. VAT
12
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
13
EXT. LH COOLING Substituted by 2511257
2511228
Not Available
14
GUARD COOL.EXT.
5222863
$42,30 Unit Price incl. VAT
15
HOSE-CROSSOVER
5410350
Not Available
16
CLAMP HOSE BLK 29MM.(10) Substituted by 7080842 (Black)
7080563
7080842
$13,64 Unit Price incl. VAT
17
BRACKET
5223985
Not Available
18
HOSE PUMP/CTR.EXT.
5410743
Not Available
19
HOSE ENG/SIDE EXT.
5410738
Not Available
20
HOSE CROSSOVER
5410557
Not Available
21
SPRING HOSE RETAINER
7041079
$7,97 Unit Price incl. VAT
22
TUBING CONVOL 1#X2.5#
5521242
Not Available
23
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
24
VALVE CHECK
7052038
$20,99 Unit Price incl. VAT
25
FILTER WATER LINE Substituted by 2530024
2530010
Not Available
26
EXT. RH.COOLING. Substituted by 2511258
2511229
$409,49 Unit Price incl. VAT
27
GROMMET RUBBER
5410021
Not Available
28
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
29
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
