DRIVE TRAIN ASSEMBLY 500 CARB 0952764 (4929192919B008)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY 500 CARB 0952764 (4929192919B007)
by
DRIVEN CLUTCH ASSEMBLY 500 CARB 0952764 (4929192919B014)

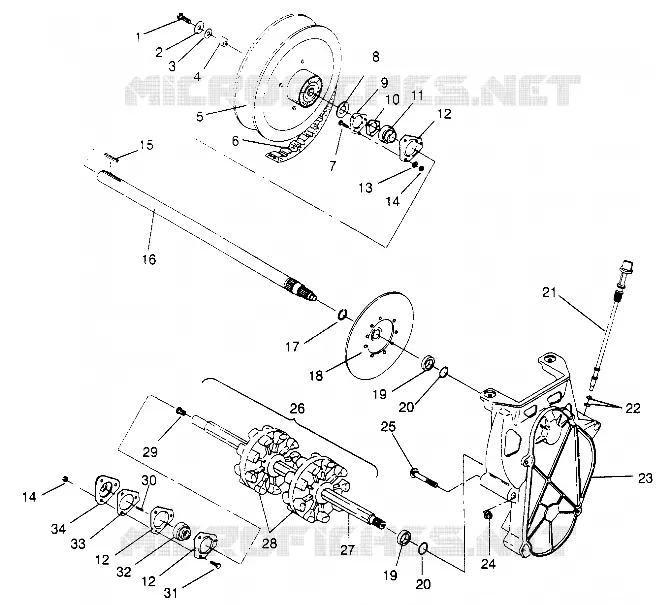

DRIVE TRAIN ASSEMBLY 500 CARB 0952764 (4929192919B008)
1
2
3
4
23
6
7
8
9
10
11
12
12
12
13
14
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
BOLT(10)
7515301
Not Available
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BELT DRIVE(5)
3211042
$141,21 Unit Price incl. VAT
7
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
8
BUSHING
7556509
$3,14 Unit Price incl. VAT
9
FLANGETTE
5240252
Not Available
10
GASKET JACKSHAFT BLACK
5811095
$4,19 Unit Price incl. VAT
11
BEARING JACKSHAFT
3514519
Not Available
12
FLANGETTE
5222751
$26,24 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
15
KEY-SQUARE(10)
7721204
$5,76 Unit Price incl. VAT
16
JACKSHAFT ASM BLK. (Incl. 16)
1332141067
Not Available
17
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
18
DISC ASM BRAKE
1910086
Not Available
19
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
20
O-RING
5410613
$3,66 Unit Price incl. VAT
21
DIPSTICK Substituted by 1332143
5431419
1332143
$89,24 Unit Price incl. VAT
22
O-RING
5410675
$3,14 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
25
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
26
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28 30 31)
1590230
Not Available
27
DRIVE SHAFT Substituted by 6230083
6230067
Not Available
28
SPROCKET 9T
5430571
Not Available
29
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
30
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
31
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
32
BEARING DRIVESHAFT
3514518
Not Available
33
GASKET
5830012
$4,19 Unit Price incl. VAT
34
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
