1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog

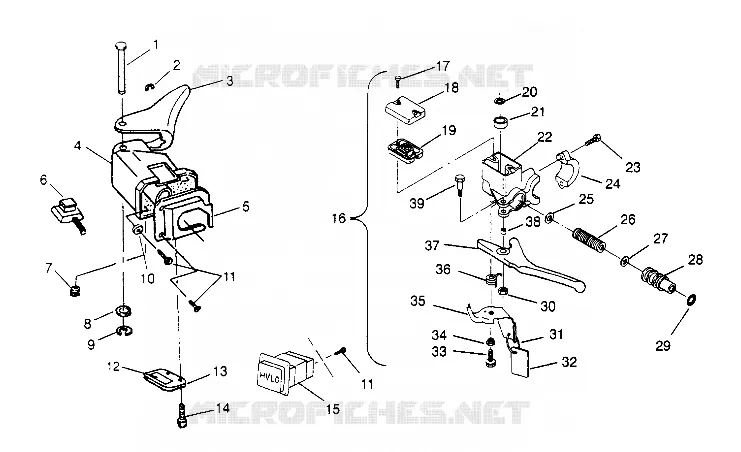

CONTROLS 500 CARB 0952764 (4929192919B004)
5
Parts Diagram
Parts Catalog
IGNITION WIRE HARNESS 500 CARB 0952764 (4929192919B003)
by
SUSPENSION ASSEMBLY 500 CARB 0952764 (4929192919B009)
CONTROLS 500 CARB 0952764 (4929192919B004)
1
2
3
3
3
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
2
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
3
LEVER ASM W/WARMER
2010094
Not Available
3
LEVER-THROTTLE (600 600 SE)
5430638
Not Available
4
BLOCK THROTTLE/BRAKE
5431592
$73,49 Unit Price incl. VAT
5
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
7
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
10
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
11
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
12
DESC NOT_AVAILABLE
5810993
Not Available
13
PLATE BLK WIREHOLDER Substituted by 5432261
5240256067
5432261
$47,24 Unit Price incl. VAT
14
SCREW
7511858
$7,34 Unit Price incl. VAT
15
SWITCH DIMMER
4110136
Not Available
16
MASTER CYL.ASM 3/4# (Incl. 14-29 36-38) (US)
2050070
Not Available
17
SCREW W/WASHER(10)
7512050
$7,34 Unit Price incl. VAT
18
COVER MASTER CYL.
5630338
Not Available
19
GASKET MASTER CYL.
5410527
$13,64 Unit Price incl. VAT
20
WASHER BAFFLE(10)
1930662
Not Available
21
BAFFLE MASTER CYL.
1930673
Not Available
22
HOUSING MASTERCYL. (US)
5130955
Not Available
23
SCREW SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
24
CLAMP MASTER CYL.
5630342
Not Available
25
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
26
SPRING MASTERCYL.
7041311
Not Available
27
U PACKING SEAL
5410164
$17,84 Unit Price incl. VAT
28
PISTON MASTER CYL.
5020679
Not Available
29
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
30
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
31
STRAP PARK.BRAKE TAG
7080447
Not Available
32
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
33
SCREW
7511866
$9,44 Unit Price incl. VAT
34
BUSHING PK.BRAKE LEVER
5020670
Not Available
35
LEVER PARK.BRAKE
5240809
Not Available
36
SPRING PK.BRAKE
7041229
$62,99 Unit Price incl. VAT
37
LEVER BRAKE
5630409
Not Available
38
BUSHING BRAKE LEVER
5332931
Not Available
39
BOLT BRAKE LEVER(10)
7512287
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
