1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog
NOSEPAN ASSEMBLY 500 CARB 0952764 (4929192919A008)
5
Parts Diagram
Parts Catalog
SEAT GAS TANK ASSEMBLY 500 CARB 0952764 (4929192919A007)
by
NOSEPAN ASSEMBLY 500 CARB 0952764 (4929192919A009)

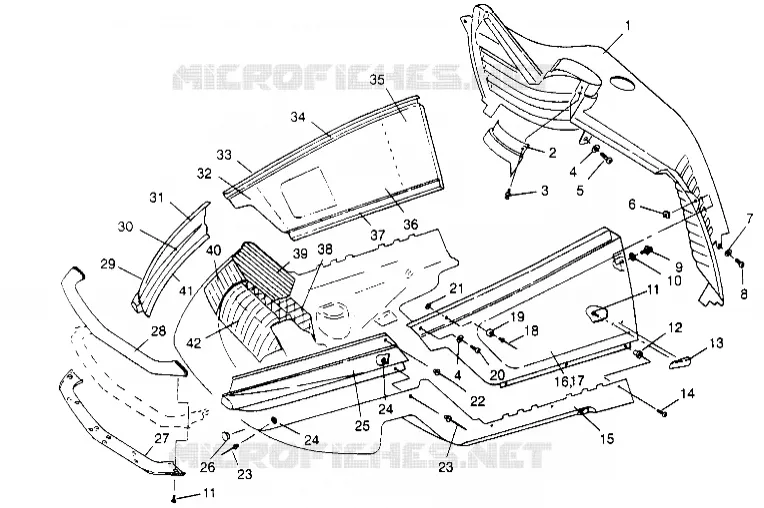

NOSEPAN ASSEMBLY 500 CARB 0952764 (4929192919A008)
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
33
33
33
34
35
36
37
38
39
40
41
42
1
CONSOLE BASIC
5431467
Not Available
2
COVER CONSOLE
5431535
Not Available
3
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
4
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
5
SCREW(10)
7512252
Not Available
6
NUT RETAINER(10)
7542138
Not Available
7
WASHER-.20X.67X.048-Y
7555792
$9,44 Unit Price incl. VAT
8
SCREW(10)
7512069
Not Available
9
RETAINER HOODLATCH
5431502
$23,09 Unit Price incl. VAT
10
WASHER RUBBER(10)
7555884
$9,44 Unit Price incl. VAT
11
SCR-PHPHD-10-24X0.5 GR2 ZY3
7512068
$4,19 Unit Price incl. VAT
12
NUT WELL
7541923
$10,49 Unit Price incl. VAT
13
BUMPER SIDE PANEL Substituted by 5432456
5431662
Not Available
14
SCREW
7512279
$1,56 Unit Price incl. VAT
15
NOSEPAN BLK.
5431899070
Not Available
16
PANEL LH SIDE BLK.MET.
5431742177
Not Available
17
FOAM LH SIDEPANEL
5811076
Not Available
18
RIVET(50)
7621315
Not Available
19
BUMPER RUBBER STOP Substituted by 5411440
5410843
Not Available
20
SCR-1/4-20X5/8 TXTR GR5 P-5-Y
7515148
$9,44 Unit Price incl. VAT
21
RIVET BURR(50)
7555756
Not Available
22
RIVET 3/16(.063-.250)ST-ST-LF-B
7621472
$2,09 Unit Price incl. VAT
23
RIVET
7621467
$2,09 Unit Price incl. VAT
24
BURR-RIVET
7555904
$1,56 Unit Price incl. VAT
25
BUMPERSIDE LH BLK.
5431492177
Not Available
26
PLUG NOSEPAN HOLE
5410820
$26,24 Unit Price incl. VAT
27
COVER F.BUMP.BOTTOM
5431481
Not Available
28
COVER F.BUMP.TOP BLK.
5431480177
Not Available
29
ASM. SIDE BUMP/FOIL RH BLACK METALLIC
2610006177
Not Available
30
FOIL SIDE BUMP MIDDLE
5811086
Not Available
31
FOIL SIDE BUMP UPPER
5811084
Not Available
32
FOIL FR.SIDEPANEL
5811072
Not Available
33
FOIL TOP INNER SIDEPANEL
5811074
Not Available
33
FOIL TOP OUT.SIDEPANEL
5811075
Not Available
34
FOIL UP.SIDEPANEL
5811073
Not Available
35
PANEL RH SIDE FOIL BLK.
2610008177
Not Available
36
FOAM-FOIL RH SIDEPANEL
5811070
Not Available
37
FOIL LOW.SIDEPANEL
5811071
Not Available
38
FOIL R.SHOCK TOWER
5810938
Not Available
39
FOIL RH PAN
5810908
Not Available
40
FOIL SIDE.SHOCKTOWER
5810939
Not Available
41
FOIL SIDE BUMP LOWER
5811085
Not Available
42
FOIL F.SHOCK TOWER
5810937
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
