1
Engine displacement
500
2
Year
1995
3
Trim
500 CARB - 0952764
4
Parts Catalog

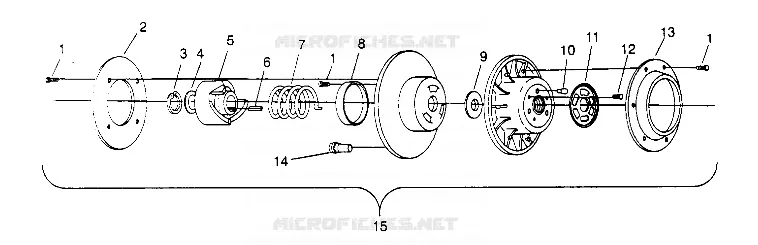

DRIVEN CLUTCH ASSEMBLY 500 CARB 0952764 (4929192919B014)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY 500 CARB 0952764 (4929192919B008)
by
ENGINE MOUNTING 500 CARB 0952764 (4929192919C001)
DRIVEN CLUTCH ASSEMBLY 500 CARB 0952764 (4929192919B014)
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
SCREW(10)
7512048
Not Available
2
PLATE (600 600 SE)
5210749
$39,78 Unit Price incl. VAT
3
RING RETAINING(10)
7714804
$17,84 Unit Price incl. VAT
4
Washer .030
7556804
$1,56 Unit Price incl. VAT
5
RAMP DRIVEN 36 DEGREE
5130895
Not Available
6
KEY SQUARE(10)
7721103
$12,59 Unit Price incl. VAT
7
SPRING CLUTCH (RED)
7041198
$104,99 Unit Price incl. VAT
8
BUSHING D.U.
3569803
Not Available
9
WASHER(10)
7555899
Not Available
10
PIN CLUTCH
5020653
$52,49 Unit Price incl. VAT
11
CAM DRIVEN ADJUSTABLE
5222878
Not Available
12
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
13
CAP DRIVEN (600 600 SE)
5230101
Not Available
14
BUTTON-RAMP (10)
5430466
$12,59 Unit Price incl. VAT
15
CLUTCH 36DEG.ADJ DRIVEN Substituted by 1321925 (Incl. 1-13)
1322155
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
