1
Engine displacement
700
2
Year
2006
3
Trim
SPORTSMAN 700 - A06MH68AA
4
Parts Catalog
DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
MAGNETO
by
GEAR SELECTOR
DRIVEN CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
5
5
5
6
6
6
6
7
7
7
8
8
9
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
1
BUSHING-.906 X 1 3/8 X 16 GA-Y
7556120
$2,09 Unit Price incl. VAT
2
Asm. Driven Clutch [Incl. 6-9 11 12 14-17 19-21]
1322548
$923,99 Unit Price incl. VAT
3
Washer Domed (If built after 1/10/04)
5248227
5250562
$4,19 Unit Price incl. VAT
4
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
5
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
6
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
7
Ring Retaining
3234204
$14,16 Unit Price incl. VAT
8
BEARING BALL ANGULAR CONTACT
3234203
$40,94 Unit Price incl. VAT
9
Washer Thrust
3234200
$13,64 Unit Price incl. VAT
10
Belt Drive
3211091
$136,49 Unit Price incl. VAT
11
RETAINER SPRING INNER
7710564
2206554
$115,49 Unit Price incl. VAT
12
WASHER THRUST
7556226
$10,49 Unit Price incl. VAT
13
Asm. Cam
3234356
$734,99 Unit Price incl. VAT
14
Screw Cap
3234192
$8,39 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL
7710522
$25,19 Unit Price incl. VAT
16
ROLLER CLUTCH TORLON
3234207
$89,24 Unit Price incl. VAT
17
RET.E-RING-E T.375-TEAM#130059
7710523
$5,24 Unit Price incl. VAT
18
Spring Compression [1322419]
3234199
Not Available
19
PIN ROLLER
3234201
$31,49 Unit Price incl. VAT
20
ROLLER CLUTCH
3234197
$89,24 Unit Price incl. VAT
21
SPRING CLUTCHPIN SPRING SLOTTED
3234202
$7,34 Unit Price incl. VAT

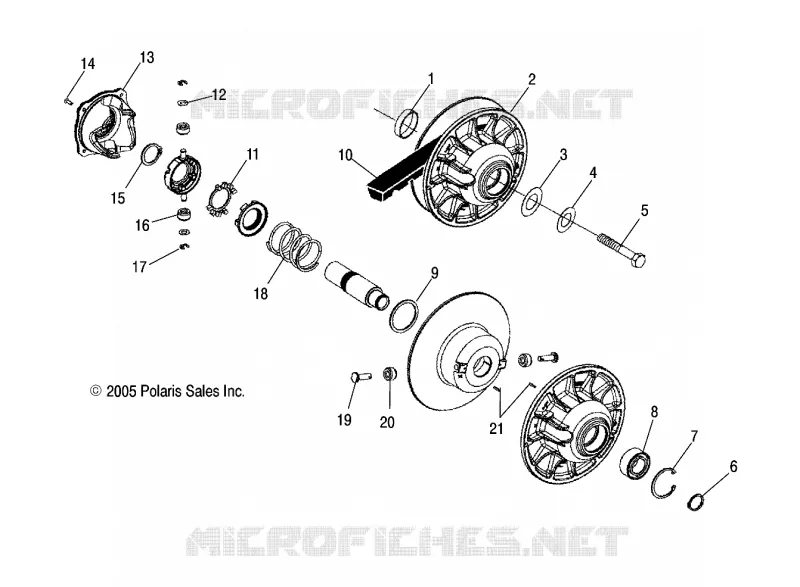

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
