1
Engine displacement
700
2
Year
2006
3
Trim
SPORTSMAN 700 - A06MH68AA
4
Parts Catalog

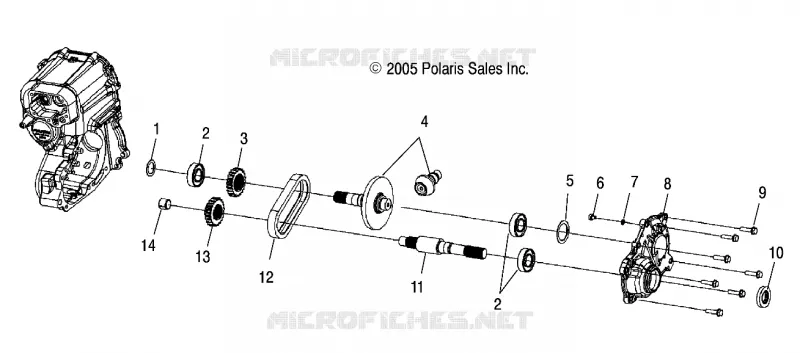

GEARCASE OUTPUT SHAFT
5
Parts Diagram
Parts Catalog
REAR CALIPER
by
HEADLIGHT POD AND SPEEDOMETER
GEARCASE OUTPUT SHAFT
-
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
-
Asm. Gearcase
1332436
Not Available
1
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
2
BEARING
3233019
$54,59 Unit Price incl. VAT
3
Sprocket 22T/18T
3233873
$188,99 Unit Price incl. VAT
4
Lapped Bevel Gear Set 10T/31T [Incl. Ref. 29 from Drive Train Main Gearcase Internals Page]
3234361
Not Available
5
SHIM
3233611
$52,49 Unit Price incl. VAT
6
THRUST BUTTON
3233582
$13,64 Unit Price incl. VAT
7
SHIM .450 X .265
3233583
$52,49 Unit Price incl. VAT
8
Cover Output Front
3234130
$482,99 Unit Price incl. VAT
9
SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25
3234114
$13,64 Unit Price incl. VAT
10
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
11
SHAFT OUTPUT MAIN FRONT
3233625
$262,49 Unit Price incl. VAT
12
Chain
3233784
$173,24 Unit Price incl. VAT
13
SPROCKET 22T
3233844
$220,49 Unit Price incl. VAT
14
BEARING
3233552
$41,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
