1
Engine displacement
700
2
Year
2006
3
Trim
SPORTSMAN 700 - A06MH68AA
4
Parts Catalog
FRONT STORAGE AND BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
AIR BOX
FRONT STORAGE AND BUMPER MOUNTING
1
1
2
2
2
2
3
3
4
5
6
7
8
8
9
10
10
11
11
11
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
1
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT
2
Support Rack Black RH
1014592067
Not Available
2
Support Rack Black LH
1014591067
$309,74 Unit Price incl. VAT
3
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
4
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
5
Guard Brush Black
1014635067
1017052-067
$661,49 Unit Price incl. VAT
6
Cover Radiator
5435629
$99,74 Unit Price incl. VAT
7
Seal Radiator Cover
5812778
Not Available
8
Latch RH
7081242
Not Available
8
Latch LH
7081241
Not Available
9
SCR-#10X1/2-HI/LO-TRX-Y
7512076
$2,09 Unit Price incl. VAT
10
Latch Wire
5334257
$19,94 Unit Price incl. VAT
11
Shield Side Radiator LH
5434314
$68,24 Unit Price incl. VAT
11
Shield Side Radiator RH
5434315
Not Available
12
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
13
GROMMET-RUBBER MOUNT .25#
5412504
$7,34 Unit Price incl. VAT
14
Cover Radiator (If built after 11/01/02)
5435046
$99,74 Unit Price incl. VAT
15
Grill Brush Guard
5247507067
$99,74 Unit Price incl. VAT
16
Screw
7518046
$9,44 Unit Price incl. VAT
17
Decal Amber Reflector RH
7172688
Not Available
17
Decal Amber Reflector LH
7172687
Not Available
18
Panel Bumper Front Black
5435357070
$104,99 Unit Price incl. VAT
19
Screw
7518383
$7,34 Unit Price incl. VAT
20
Screw
7518382
$9,44 Unit Price incl. VAT
21
WASHER- .327X.875X.090 FL-M
7556341
$3,14 Unit Price incl. VAT
22
Asm. Bumper Front Black [Incl. Warning Decal]
2633271070
$351,74 Unit Price incl. VAT
23
Asm. Box Lower Front
1202838
2203484
$577,49 Unit Price incl. VAT
24
Plug Compartment
5412352
5418084
$6,29 Unit Price incl. VAT
25
Cover Strut
5435628
$73,49 Unit Price incl. VAT
26
WASHER-.327X.875X.090 FL-Y
7555960
$7,34 Unit Price incl. VAT
27
Screw Flange
7517208
$3,66 Unit Price incl. VAT
28
Seal
5521693
$52,49 Unit Price incl. VAT
29
Seal Lid/Bumper
5521706
$52,49 Unit Price incl. VAT
30
Asm. Front Cover [Incl. 5 and Warning Decal]
2633157
2633162
$293,99 Unit Price incl. VAT
31
Channel Lid Front Flat Black Wrinkle
5247653418
$120,74 Unit Price incl. VAT
32
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
33
Screw
7518427
$2,09 Unit Price incl. VAT
34
PIN HINGE FRONT
5134576
$12,59 Unit Price incl. VAT

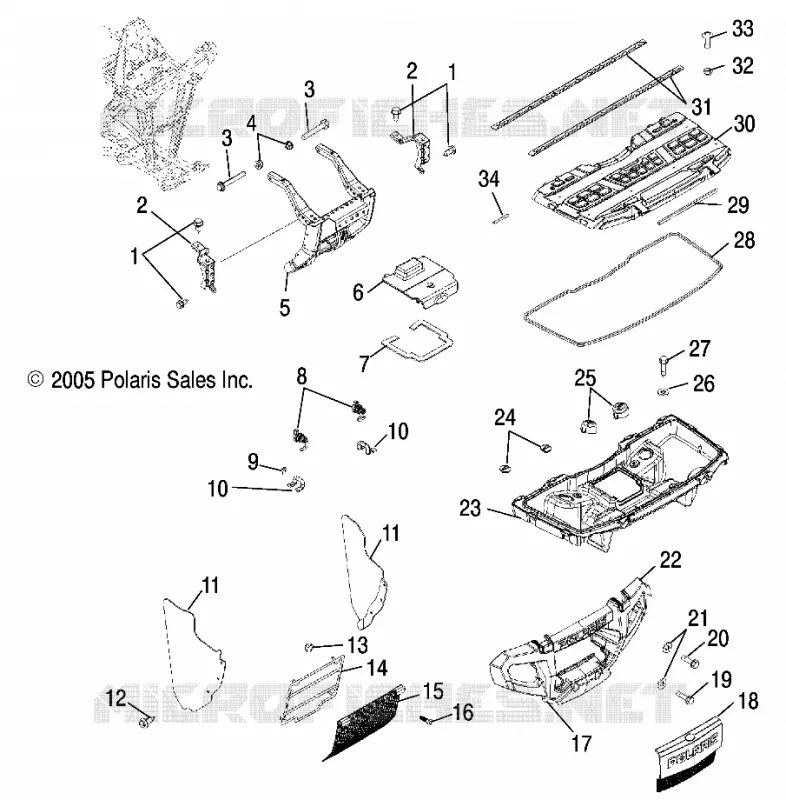

Find the detailed FRONT STORAGE AND BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
