1
Engine displacement
700
2
Year
2006
3
Trim
SPORTSMAN 700 - A06MH68AA
4
Parts Catalog

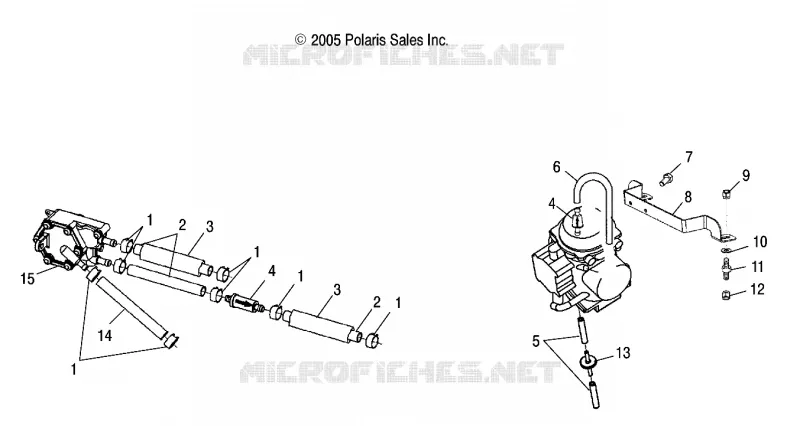

CARBURETOR MOUNTING AND FUEL PUMP/LINES
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
FUEL SYSTEM
CARBURETOR MOUNTING AND FUEL PUMP/LINES
1
1
1
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
2
Line Fuel
8450103
8450117-250
$99,74 Unit Price incl. VAT
3
Sheath Reflective Sleeve
845010829
Not Available
4
FILTER
2530009
$12,59 Unit Price incl. VAT
5
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
6
Hose Formed Vent
5412287
$17,21 Unit Price incl. VAT
7
SCR-M5X0.8X10 PHPN ZY L/W SEMS
7517867
$3,14 Unit Price incl. VAT
8
Bracket Carburetor Mount
5247141
Not Available
9
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
10
WASHER-.250X.563X.047 WRGHT-Y
7558203
$6,29 Unit Price incl. VAT
11
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
12
Insert-1/4-20
7542143
$10,49 Unit Price incl. VAT
13
VENT CHECKVALVE
7051011
Not Available
14
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
15
Pump Fuel
2520227
$146,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
