1
Engine displacement
700
2
Year
2006
3
Trim
SPORTSMAN 700 - A06MH68AA
4
Parts Catalog
GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
CONTROLS
by

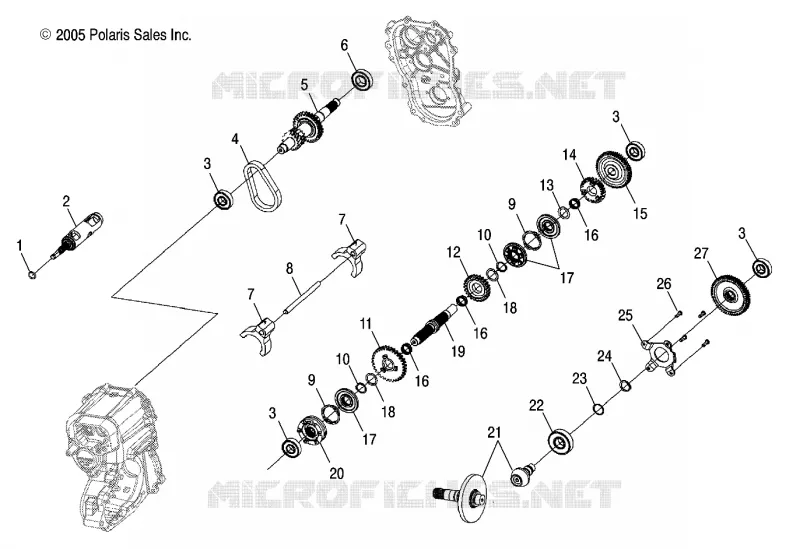

GEARCASE INTERNALS
-
1
2
3
3
3
3
4
5
6
7
7
8
9
9
10
10
11
12
13
14
15
16
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
-
Asm. Gearcase
1332437
Not Available
1
O-RING
3233548
$52,49 Unit Price incl. VAT
2
Drum Shift
3234211
$482,99 Unit Price incl. VAT
3
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
4
CHAIN SILENT 34P
3233036
Not Available
5
Shaft Input
3233890
Not Available
6
BEARING
3233019
$54,59 Unit Price incl. VAT
7
SUB-ASM. SHIFT FORK W/PIN
3234220
$309,74 Unit Price incl. VAT
8
RAIL SHIFT SHAFT
3233860
$99,74 Unit Price incl. VAT
9
SPRING WAVE
3234144
$52,49 Unit Price incl. VAT
10
RING RETAINING
3233850
$19,94 Unit Price incl. VAT
11
GEAR LOW 67T
3233852
$456,74 Unit Price incl. VAT
12
SPROCKET 38T 6-FACE
3233854
$257,24 Unit Price incl. VAT
13
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
14
Gear 28T
3233912
Not Available
15
Gear 51T
3234136
$440,99 Unit Price incl. VAT
16
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
17
ENGAGEMENT DOG
3233875
$309,74 Unit Price incl. VAT
18
WASHER
3233851
$19,94 Unit Price incl. VAT
19
Shaft Reverse
3233853
Not Available
20
Engagement Dog
3234040
$299,24 Unit Price incl. VAT
21
SUB-ASM. GROUND SPIRAL BEVEL [INCL. REF. 28 FROM DRIVE TRAIN MAIN GEARCASE INTERNAL PAGE]
3234911
$734,99 Unit Price incl. VAT
22
Bearing Ball
3233607
$60,89 Unit Price incl. VAT
23
SPACER
3233357
$36,74 Unit Price incl. VAT
24
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
25
COVER BEARING CENTER DRIVE
3234122
$120,74 Unit Price incl. VAT
26
SCREW TORX TRUSS HD 43834 X 0.75
3234086
$10,49 Unit Price incl. VAT
27
Gear 56T
3234137
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
