1
Engine displacement
700
2
Year
2006
3
Trim
SPORTSMAN 700 - A06MH68AA
4
Parts Catalog
HEADLIGHT POD AND SPEEDOMETER
5
Parts Diagram
Parts Catalog
GEARCASE OUTPUT SHAFT
by
ELECTRICAL
HEADLIGHT POD AND SPEEDOMETER
1
2
2
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
16
1
SWITCH WORK LIGHT ON/OFF [E57FS][S57FS]
4011074
$73,49 Unit Price incl. VAT
2
Pod Headlight Upper [AK]
5435364400
Not Available
2
Pod Headlight Upper [AN]
5435364341
Not Available
2
Pod Hdlt Upper Med Yellow [AD]
5435364053
Not Available
3
Bezel
5434380
5437258
$83,99 Unit Price incl. VAT
4
Asm. Cluster ATV w/Fuel
3280431
$677,24 Unit Price incl. VAT
5
MOUNT-RUBBER INSTR. CLUSTER
5412138
$83,99 Unit Price incl. VAT
6
SCREW(10)
7511881
$2,09 Unit Price incl. VAT
7
KNOB ADJUSTING
4032079
$52,49 Unit Price incl. VAT
8
ROD ADJUSTER HEADLIGHT
4011378
$83,99 Unit Price incl. VAT
9
Pod Headlight Lower Black Metallic [AU]
5435365177
5436747-177
$167,99 Unit Price incl. VAT
9
Pod Headlight Lower Black
5435365070
5436747-070
$167,99 Unit Price incl. VAT
10
SCREW
7517658
$10,49 Unit Price incl. VAT
11
CAP HALL EFFECT
5132382
$47,24 Unit Price incl. VAT
12
Sensor
4010298
$220,49 Unit Price incl. VAT
13
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
14
CLIP-SCREW #8/10 .03-.10 PANEL
7670127
$17,84 Unit Price incl. VAT
15
ASM. HEADLIGHT 50W [INCL. BULB 4 9][C1]
2410429
$204,74 Unit Price incl. VAT
16
KIT-HARNESS HEADLIGHT
2204143
$141,74 Unit Price incl. VAT
16
BULB-HEADLIGHT 50 WATT
4010253
$52,49 Unit Price incl. VAT

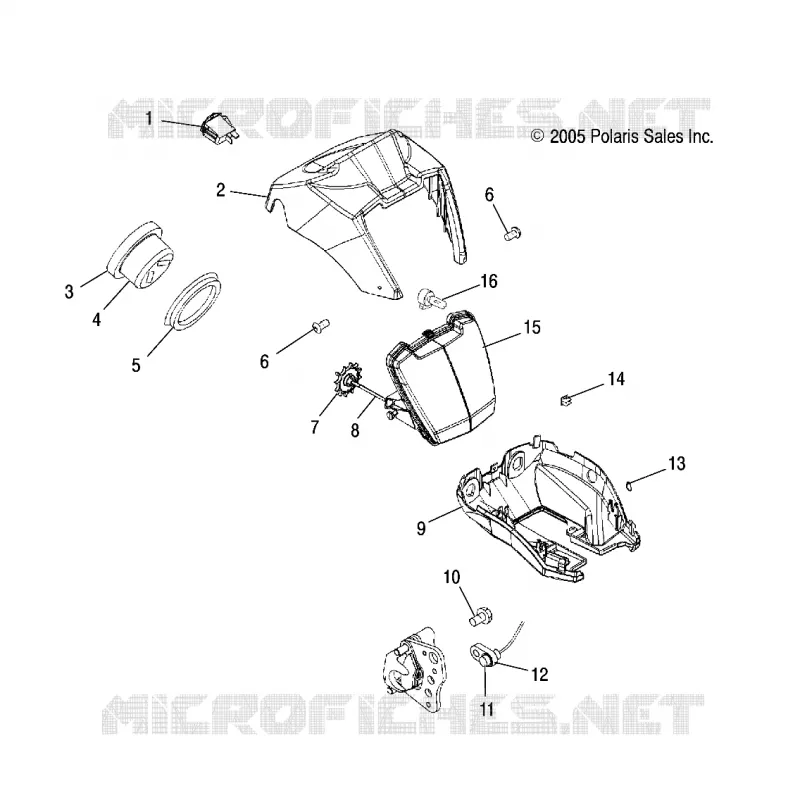

Find the detailed HEADLIGHT POD AND SPEEDOMETER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
