Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY
4
Parts Catalog
FRONT BUMPER AND MOUNTING
5
Parts Diagram
Parts Catalog
DECALS
by
OPERATOR SEAT
FRONT BUMPER AND MOUNTING
1
2
2
2
2
3
3
4
5
5
6
6
6
6
7
8
9
10
10
11
12
13
14
15
16
16
17
17
1
2
3
4
4
4
4
4
4
5
6
7
7
7
7
8
8
9
9
9
9
10
10
10
10
10
10
10
11
11
12
12
13
14
15
16
17
1
Asm. Bumper Front Black [Incl. Reflectors]
2633527070
$351,74 Unit Price incl. VAT
2
Support Rack Black RH
1014592067
Not Available
2
Support Rack Black LH
1014591067
$309,74 Unit Price incl. VAT
3
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
4
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
5
Guard Brush Black
1015033067
1017050-067
$493,49 Unit Price incl. VAT
5
Guard Brush Black
1017050067
$493,49 Unit Price incl. VAT
6
Shield Side Radiator LH
5434314
$68,24 Unit Price incl. VAT
6
Shield Side Radiator RH
5434315
Not Available
7
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
8
GROMMET-RUBBER MOUNT .25#
5412504
$7,34 Unit Price incl. VAT
9
Cover Radiator (If built after 11/01/02)
5435046
$99,74 Unit Price incl. VAT
10
Decal Reflector Amber LH [Built 1/02/08 and After]
7175490
$23,09 Unit Price incl. VAT
10
Decal Reflector Amber RH
7179491
Not Available
11
Grill Brush Guard
5247507067
$99,74 Unit Price incl. VAT
12
Screw
7518046
$9,44 Unit Price incl. VAT
13
Panel Bumper Front Black
5435357070
$104,99 Unit Price incl. VAT
14
Screw
7518383
$7,34 Unit Price incl. VAT
15
Screw
7518382
$9,44 Unit Price incl. VAT
16
WASHER- .327X.875X.090 FL-M
7556341
$3,14 Unit Price incl. VAT
17
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
$2,09 Unit Price incl. VAT

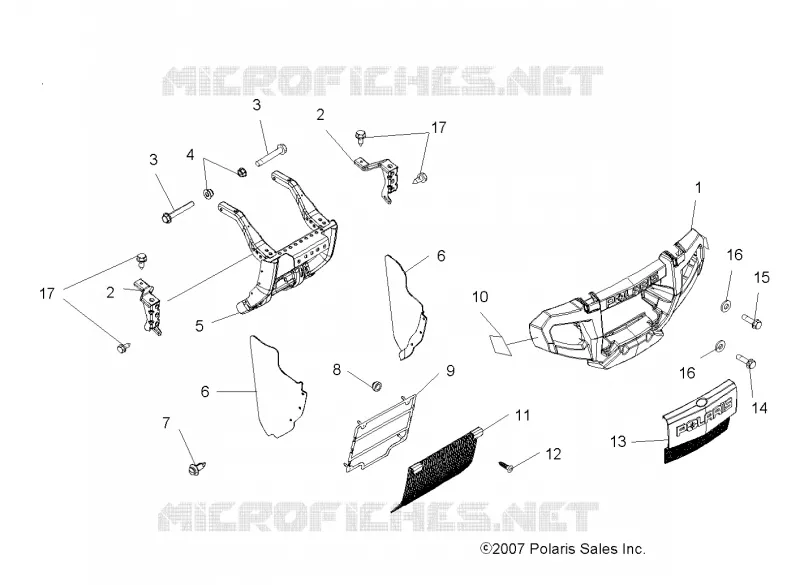

Find the detailed FRONT BUMPER AND MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
