DRIVE TRAIN, MAIN GEARCASE INTERNAL FOR SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY FROM 2009

DRIVE TRAIN, MAIN GEARCASE MOUNTING

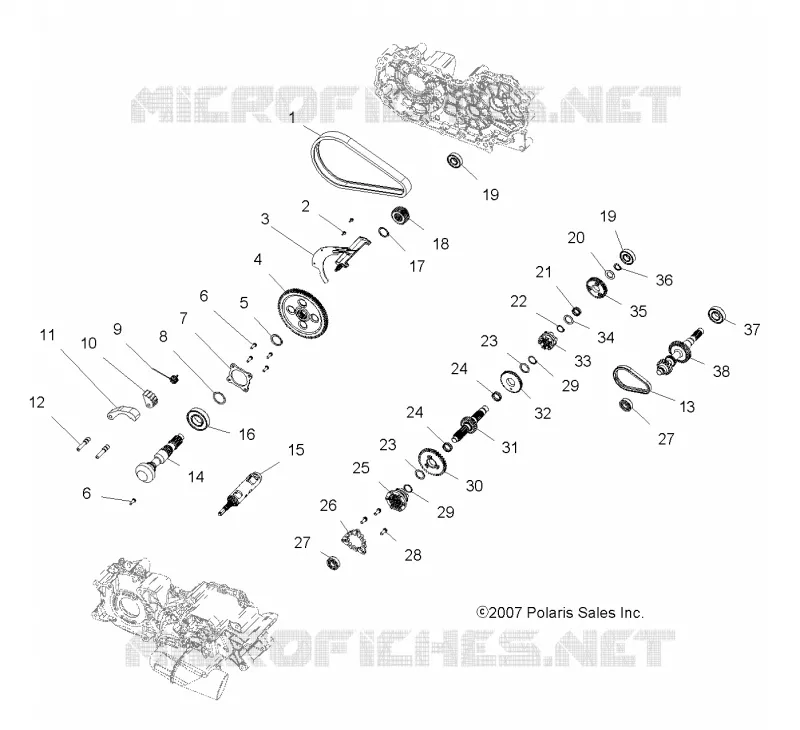

DRIVE TRAIN, MAIN GEARCASE INTERNAL

-

Asm. Gearcase [Incl. All]

1332625

Not Available

1

CHAIN SILENT 3/8# X 1.25# X 86P

3234442

$640,49 Unit Price incl. VAT

2

SCREW TAPPING TORX PH 11902 X.50

3233749

$10,49 Unit Price incl. VAT

3

DEFLECTOR OIL

3234061

$52,49 Unit Price incl. VAT

4

GEAR OUTPUT 91T HRC

3234062

$493,49 Unit Price incl. VAT

5

RING RETAINING SHAFT DIA. 1.375

3233364

$12,59 Unit Price incl. VAT

6

SCREW TORX TRUSS HD 43834 X 0.75

3234086

$10,49 Unit Price incl. VAT

7

COVER BEARING CENTER DRIVE

3234063

$62,99 Unit Price incl. VAT

8

SHIM 1.700 X 1.385

3234271

$47,24 Unit Price incl. VAT

9

SPRING TORSION

3233431

$47,24 Unit Price incl. VAT

10

CAM CHAIN TENSIONER

3233434

$26,24 Unit Price incl. VAT

11

SHOE CHAIN TENSIONER

3233433

$62,99 Unit Price incl. VAT

12

PIN TENSIONER

3233432

$13,64 Unit Price incl. VAT

13

SILENT CHAIN .25P X 0.4 W X 50L

3234264

$188,99 Unit Price incl. VAT

14

PINION CENTER DRIVE 13T

3234263

$818,99 Unit Price incl. VAT

15

DRUM SHIFT MACH

3234360

$335,99 Unit Price incl. VAT

16

BEARING BALL 6207 C3 35MMX72MMX17MM

3234065

$80,84 Unit Price incl. VAT

17

RING RETAINING IRR 7200-118

3233699

$13,64 Unit Price incl. VAT

18

SPROCKET 19T 1.25#

3234441

$257,24 Unit Price incl. VAT

19

BEARING BALL 6204 20 X 47 X 14

3233018

$47,24 Unit Price incl. VAT

20

WASHER THRUST 1.270 X 0.793 X 0.065

3233176

$17,84 Unit Price incl. VAT

21

BEARING NEEDLE

3233718

$60,89 Unit Price incl. VAT

22

RING RETAINING BASIC EXTERNAL DIA 0.84

3234336

$10,49 Unit Price incl. VAT

23

WASHER THRUST 1.300 X 0.995 X 0.065

3234248

$17,84 Unit Price incl. VAT

24

BEARING NEEDLE 25 X 29 X 10

3233103

$54,59 Unit Price incl. VAT

25

ENGAGEMENT DOG 6-FACE L/P

3234257

$283,49 Unit Price incl. VAT

26

PLATE PARK 12 FACE

3233915

$73,49 Unit Price incl. VAT

27

BEARING BALL 6203 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

28

SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$10,49 Unit Price incl. VAT

29

RING RETAINING BASIC EXT 0.938

3233306

$9,44 Unit Price incl. VAT

30

GEAR 33T 6 FACE

3234291

$325,49 Unit Price incl. VAT

31

SHAFT REVERSE 26T

3234280

$488,24 Unit Price incl. VAT

32

SPROCKET 38T 6 FACE

3234290

$283,49 Unit Price incl. VAT

33

DOG ENGAGEMENT 6 FACE

3234258

$178,49 Unit Price incl. VAT

34

WASHER 1.250 X 0.876 X 0.05

3233855

$19,94 Unit Price incl. VAT

35

Gear Spur

3234355

$204,74 Unit Price incl. VAT

36

RING RETAINING BASIC EXTERNAL .787 SHAFT

3234067

$14,69 Unit Price incl. VAT

37

BEARING

3233019

$54,59 Unit Price incl. VAT

38

Shaft Input

3234351

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
