DRIVE TRAIN, SECONDARY CLUTCH FOR SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY FROM 2009

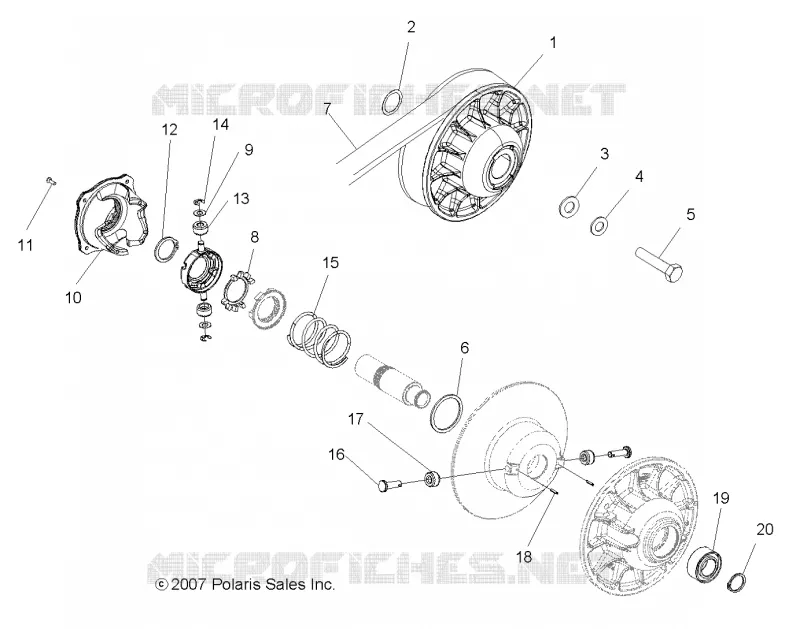

DRIVE TRAIN, SECONDARY CLUTCH

1

Asm. Driven Clutch EBS Damped [Incl. 6 8 9 11-14 16-19]

1322751

Not Available

2

BUSHING-.906 X 1 3/8 X 16 GA-Y

7556120

$2,09 Unit Price incl. VAT

3

WASHER DOMED SMALL

5250562

$4,19 Unit Price incl. VAT

4

WASHER-5/16 SPRING LK-MED-Y

7552901

$2,09 Unit Price incl. VAT

5

BOLT(10)

7515327

$10,49 Unit Price incl. VAT

6

Washer Thrust

3234200

$13,64 Unit Price incl. VAT

7

BELT DRIVE EBS

3211113

$128,09 Unit Price incl. VAT

8

RETAINER SPRING INNER

7710564

$115,49 Unit Price incl. VAT

9

WASHER THRUST

7556226

$10,49 Unit Price incl. VAT

10

Cam

3234604

Not Available

11

Screw Cap

3234192

$8,39 Unit Price incl. VAT

12

RING RETAINING BASIC EXTERNAL

7710522

$25,19 Unit Price incl. VAT

13

ROLLER CLUTCH TORLON

3234207

$89,24 Unit Price incl. VAT

14

RET.E-RING-E T.375-TEAM#130059

7710523

$5,24 Unit Price incl. VAT

15

Spring Compression Yellow

3234452

$173,24 Unit Price incl. VAT

16

PIN ROLLER

3234201

$31,49 Unit Price incl. VAT

17

ROLLER CLUTCH

3234197

$89,24 Unit Price incl. VAT

18

SPRING CLUTCHPIN SPRING SLOTTED

3234202

$7,34 Unit Price incl. VAT

19

BEARING BALL ANGULAR CONTACT

3234203

$40,94 Unit Price incl. VAT

20

RING RETAINING

3234205

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
