DRIVE TRAIN, MAIN GEARCASE FOR SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY FROM 2009

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, PRIMARY CLUTCH

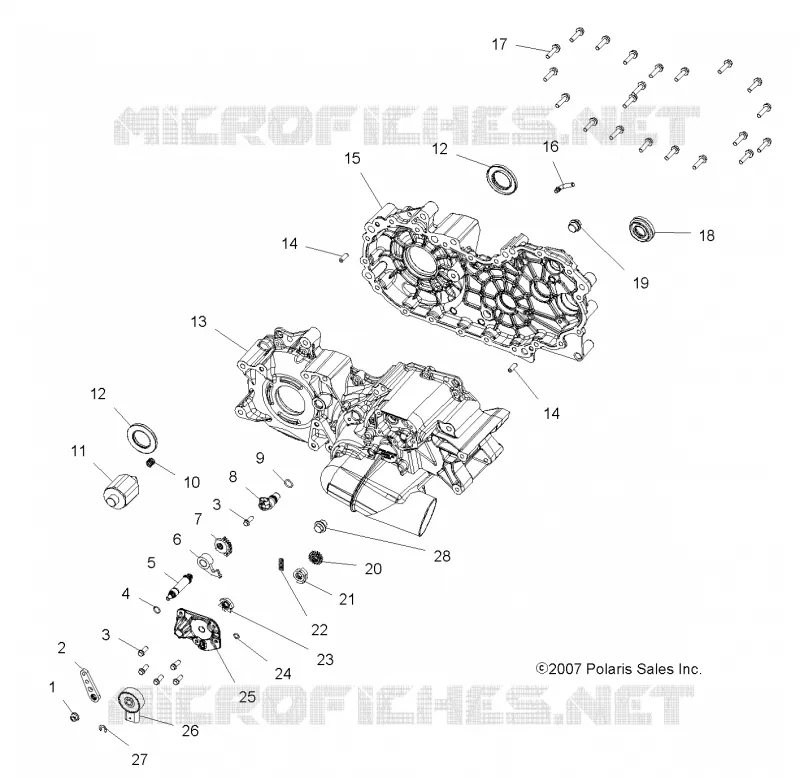

DRIVE TRAIN, MAIN GEARCASE

-

Asm. Gearcase [Incl. All]

1332625

Not Available

1

NUT LOCK HEX FLANGE NYLON 5/16-24

3233961

$5,24 Unit Price incl. VAT

2

Bellcrank

3234585

Not Available

3

SCREW TAPPING HEX WASHER HD 1/4-20 X 0.75

3234247

$10,49 Unit Price incl. VAT

4

O-RING -014

3233869

$10,49 Unit Price incl. VAT

5

SHAFT SHIFT

3233831

$115,49 Unit Price incl. VAT

6

PAWL DETENT

3233829

$68,24 Unit Price incl. VAT

7

GEAR-SECTOR 31T

3233832

$68,24 Unit Price incl. VAT

8

SENSOR-SPEED TRANS

4013908

$204,74 Unit Price incl. VAT

9

O-RING

3234302

$13,64 Unit Price incl. VAT

10

SPRING COMPRESSION 0.54 O.D. X 0.44 I.D. X 0.05 WIRE

3234277

$26,24 Unit Price incl. VAT

11

SOLENOID

3235478

$545,99 Unit Price incl. VAT

12

SEAL TRIPLE LIP NITRILE 1.969 X 2.750 X .315

3234300

$57,74 Unit Price incl. VAT

13

Gearcase RH

3234259

Not Available

14

PIN DOWEL 5/16 X 1.0

3234244

$13,64 Unit Price incl. VAT

15

COVER LH MACH

3234260

$803,24 Unit Price incl. VAT

16

TUBE VENT 90 -1/4 INCH HOSE

3234230

$19,94 Unit Price incl. VAT

17

SCREW TAPPING HEX WASHER HD 5/16-18 X 1.25

3234114

$13,64 Unit Price incl. VAT

18

Seal

3233874

$57,74 Unit Price incl. VAT

19

PLUG 3/4-16 41775 INTERNAL HEX

3233794

$31,49 Unit Price incl. VAT

20

GEAR SECTOR 16T

3233839

$68,24 Unit Price incl. VAT

21

Disc Lockout

3235243

$17,84 Unit Price incl. VAT

22

SPRING COMPRESSION 0.36 O.D. X 1.125

3234578

$26,24 Unit Price incl. VAT

23

STAR DETENT

3233909

$52,49 Unit Price incl. VAT

24

O-RING 2-012

3233076

$11,54 Unit Price incl. VAT

25

COVER SECTOR GEARS MACHINED

3234188

$209,99 Unit Price incl. VAT

26

SWITCH ROTARY 6-PIN ITW [GEAR POSITION]

3233835

$225,74 Unit Price incl. VAT

27

RING RETAINING BASIC EXTERNAL

3233834

$19,94 Unit Price incl. VAT

28

MAGNETIC PLUG 3/4-16 INTERNAL HEX

3234529

$31,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
