1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY
4
Parts Catalog

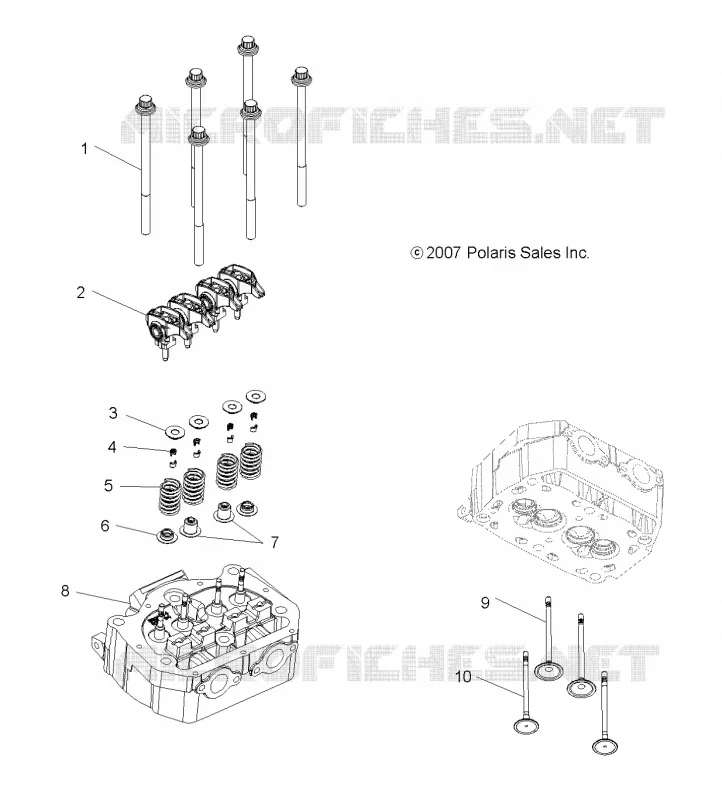

VALVES
5
Parts Diagram
Parts Catalog
THROTTLE BODY MOUNTING
by
MANUALS INFORMATION
VALVES
-
1
2
3
3
4
5
6
6
-
8
9
10
-
Seal Valve Guide
5411895
$15,74 Unit Price incl. VAT
1
Bolt
7518274
7519219
$18,89 Unit Price incl. VAT
2
ASM. ARM ROCKER
1202169
$204,74 Unit Price incl. VAT
3
Retainer Spring
5131413
$41,99 Unit Price incl. VAT
3
RETAINER SPRING
5136932
$52,49 Unit Price incl. VAT
4
RETAINER LOCK
5910042
$10,49 Unit Price incl. VAT
5
Spring Valve
7043318
$52,49 Unit Price incl. VAT
6
Seat Valve Spring
5910194
Not Available
6
SEAT VALVE SPRING
5910329
$52,49 Unit Price incl. VAT
7
Seal Valve Guide
5411895
$15,74 Unit Price incl. VAT
8
Head Cylinder
3021915
Not Available
9
VALVE INTAKE
5137265
$73,49 Unit Price incl. VAT
10
Valve Exhaust
5136258
5137264
$120,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
