Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI - A09DN76AB/AL/AY
4
Parts Catalog

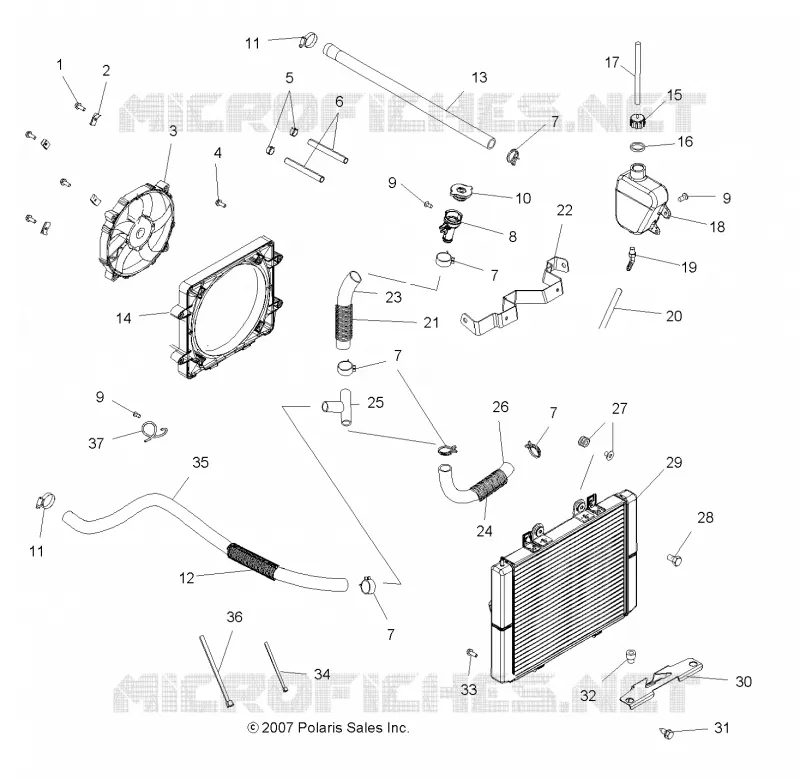

COOLING SYSTEM (BUILT 4/06/09 AND BEFORE)
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
CONTROLS THROTTLE
COOLING SYSTEM (BUILT 4/06/09 AND BEFORE)
1
2
3
3
4
5
6
7
7
7
7
7
7
7
7
7
7
8
9
9
9
10
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
21
22
23
23
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
35
36
37
1
Screw
7517975
$10,49 Unit Price incl. VAT
2
U-Clip
7547197
$11,01 Unit Price incl. VAT
3
Fan 11 Inch
2410901
Not Available
3
FAN-11# ASSEMBLY ATV PKRD
2410413
$493,49 Unit Price incl. VAT
4
Screw
7547220
Not Available
5
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
6
LINE FUEL
8450120600
$136,49 Unit Price incl. VAT
7
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
7
Clamp Rot Spring [If built between 11/01/04 and 11/12/04]
7081047
Not Available
8
Filler Remote
5435196
Not Available
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
Cap Pressure
1240044
1240508
$89,24 Unit Price incl. VAT
10
CAP PRESSURE
1240508
$89,24 Unit Price incl. VAT
11
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
12
Conduit Flex
552179438
$16,79 Unit Price incl. VAT
12
Guard Hose 15 Inch
5521742
$15,95 Unit Price incl. VAT
13
Hose
5413684
$83,99 Unit Price incl. VAT
13
Hose Engine Upper
5413169
$83,99 Unit Price incl. VAT
14
Shroud Fan
5434853
$99,74 Unit Price incl. VAT
15
CAP OVER FLOW BOTTLE W/FITTING
5437635
$9,44 Unit Price incl. VAT
16
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
17
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
18
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
19
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
Guard Hose [If built after 10/05/06]
5521749
Not Available
21
CONDUIT FLEX
552179417
$16,79 Unit Price incl. VAT
22
Bracket Radiator Upper
5250769
Not Available
23
Hose Filler Neck
5413682
Not Available
23
Hose Filler Neck
5412857
Not Available
24
Guard Hose 9 Inch
5521753
$9,23 Unit Price incl. VAT
24
Conduit Flex
552179220
Not Available
25
CONNECTOR-TEE 1# 1# 1# BARBED
7052373
$19,94 Unit Price incl. VAT
25
T-Connector
7052397
7052373
$19,94 Unit Price incl. VAT
26
Hose Lower Radiator
5413681
$52,80 Unit Price incl. VAT
26
Hose Lower Radiator
5412838
$52,80 Unit Price incl. VAT
27
Asm. Grommet and Insert
5411975
$6,29 Unit Price incl. VAT
28
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
29
Radiator
1240301
1240521
$850,49 Unit Price incl. VAT
30
Bracket Radiator Lower
5247047067
$115,49 Unit Price incl. VAT
31
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
32
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
33
Valve Plastic Radiator/Cooler Drain
7052296
Not Available
34
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
35
Hose Engine Lower
5413683
$104,99 Unit Price incl. VAT
35
Hose Engine Lower
5413168
$104,99 Unit Price incl. VAT
36
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
37
Retainer Hose [If built after 2/01/07]
7043335
$3,98 Unit Price incl. VAT
