1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog

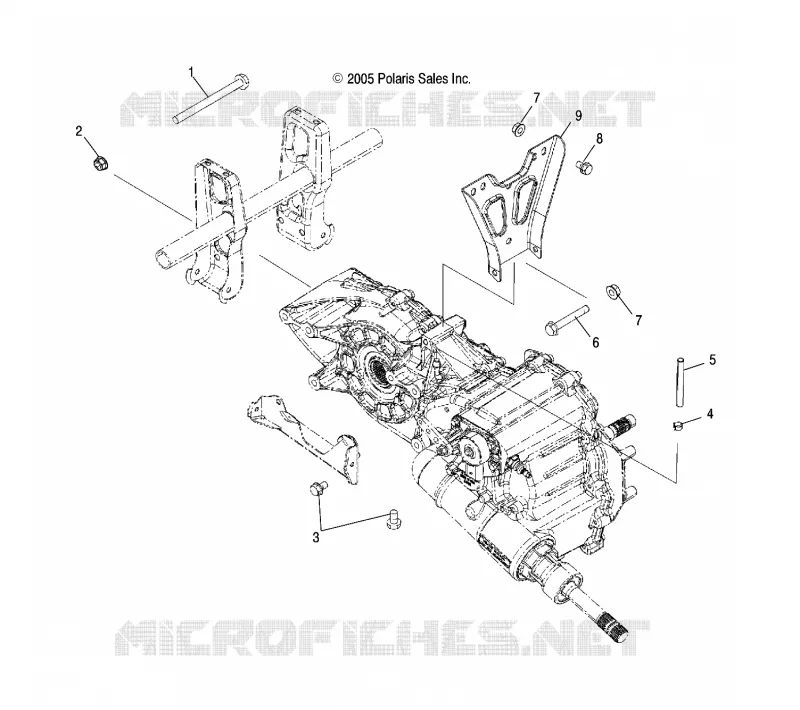

TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
ELECTRICAL
by
FUEL INJECTION
TRANSMISSION MOUNTING
1
2
3
4
5
6
7
7
8
9
1
BOLT-3/8-16X7 HX FLNG GR5-Y
7518365
$13,64 Unit Price incl. VAT
2
NUT-FLANGED 3/8-16 NYLON
7547180
$4,19 Unit Price incl. VAT
3
Bolt Hex Flange
7518364
$3,14 Unit Price incl. VAT
4
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
5
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
6
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
7
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
8
SCR-5/16-18X3/4 HX/FLG GR5-Y
7515398
$4,19 Unit Price incl. VAT
9
Support Transmission Upper
5221624067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
