1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog
WHEEL REAR DRIVE
5

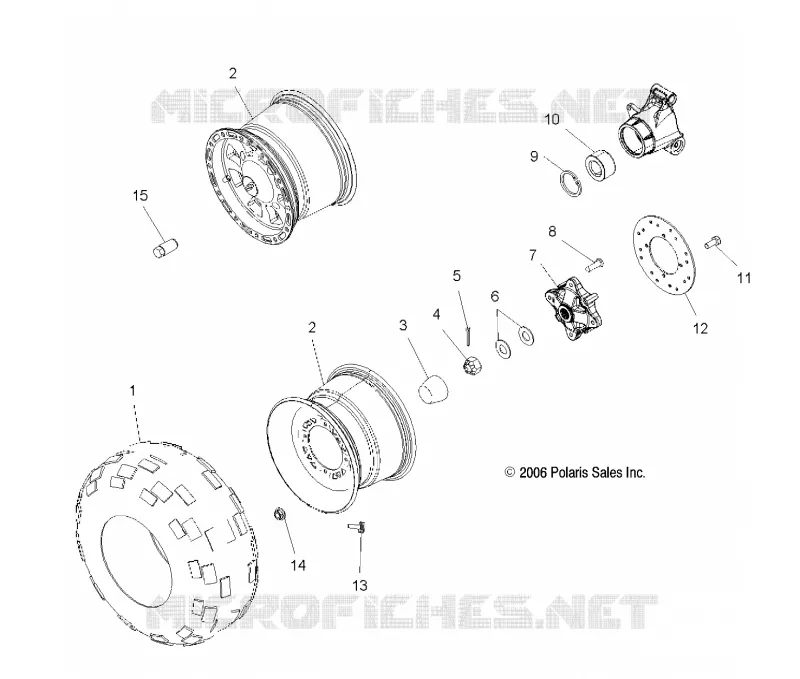

Parts Diagram
Parts Catalog
TAILLAMPS / HEADLIGHTS
by
REAR SUSPENSION
WHEEL REAR DRIVE
1
2
2
2
2
2
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
4
5
5
6
6
7
8
9
10
11
1
Tire 26x11-12
5412661
5419038
$269,84 Unit Price incl. VAT
2
Rim Rear Cast Aluminum [AB]
1520899
Not Available
2
Rim Rear NBU [AT]
1520457455
Not Available
2
WELD-RIM REAR 12X8.0 BLK [TO 9/4/2023]
1520457067
1523450-067
$225,21 Unit Price incl. VAT
3
DUSTCOVER HUB
5411164
5413427
$52,49 Unit Price incl. VAT
4
NUT CASTLE(10)
7543005
Not Available
5
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
6
WASHER-CONE.755X1.5X.072-.107P [RRP99C]
7555796
$14,69 Unit Price incl. VAT
7
Hub Rear Wheel (AA)
5134311
Not Available
8
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
8
STUD(10)
7515513
$2,09 Unit Price incl. VAT
9
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
10
Bearing Ball
3585502
3514635
$73,49 Unit Price incl. VAT
11
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
12
Disc Brake Rear
5244635
$141,74 Unit Price incl. VAT
13
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
14
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
15
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
