1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog

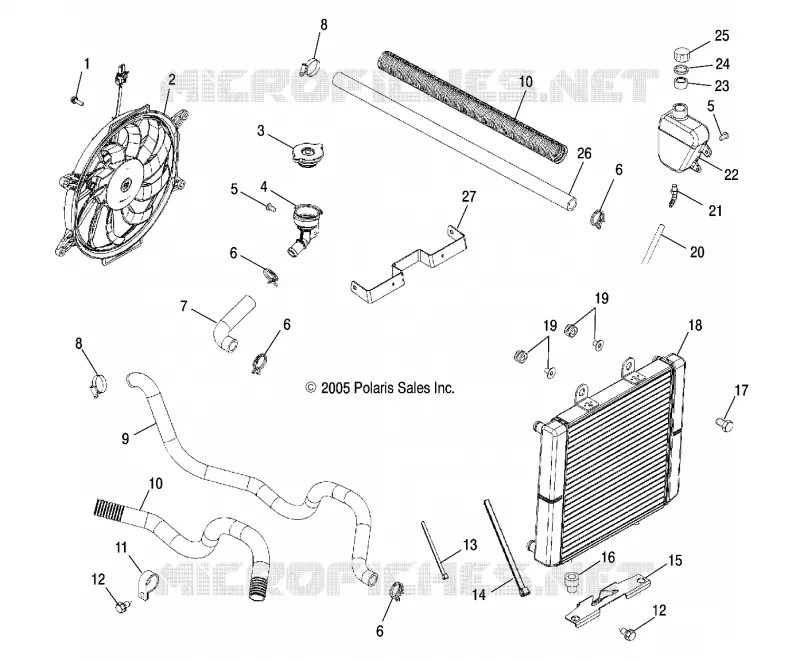

COOLING SYSTEM
5
Parts Diagram
Parts Catalog
FRONT CAB
by
EXHAUST SYSTEM
COOLING SYSTEM
1
2
3
4
5
5
6
6
6
6
7
8
8
9
10
10
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
1
2
3
4
5
6
7
8
1
2
3
4
4
4
4
4
4
5
6
7
8
8
8
8
9
9
10
10
11
11
11
11
11
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
1
Screw
7517975
$10,49 Unit Price incl. VAT
2
Asm. Fan and Motor
2410383
$303,96 Unit Price incl. VAT
3
Cap Pressure
1240044
1240508
$89,24 Unit Price incl. VAT
4
FILLER NECK RADIATOR
5412402
$52,49 Unit Price incl. VAT
5
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
6
Clamp Roto Clip
7080826
$9,44 Unit Price incl. VAT
7
Hose Filler Neck
5412405
Not Available
8
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
9
Hose Engine Lower
5412404
$125,99 Unit Price incl. VAT
10
Guard Hose
5521550
$19,94 Unit Price incl. VAT
11
CLAMP-HOSE 1.312 VINYL COATED
7080851
Not Available
12
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
13
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
14
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
15
Bracket Radiator Lower
5247047067
$115,49 Unit Price incl. VAT
16
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
17
SCR-1/4-20X1 HX/WH/TAP/R GR5-Y
7515179
$4,19 Unit Price incl. VAT
18
Radiator
1240152
1241477
$834,74 Unit Price incl. VAT
19
Asm. Grommet and Insert
5411975
$6,29 Unit Price incl. VAT
20
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
21
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
22
TANK SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
23
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
24
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
25
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
26
Hose Engine Upper
5412403
$115,49 Unit Price incl. VAT
27
Bracket Radiator Lower
5246754067
$83,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
