1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog
FRONT CAB
5

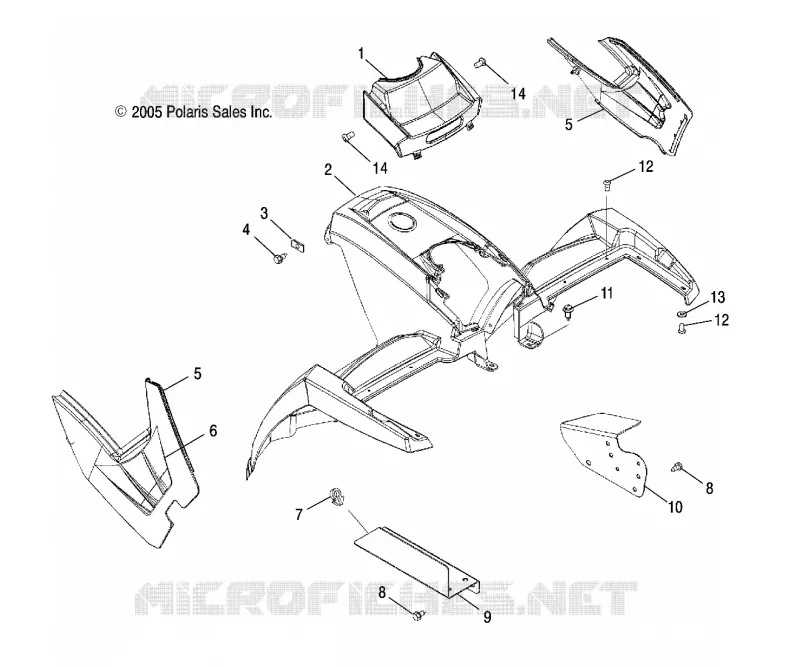

Parts Diagram
Parts Catalog
REAR CAB SEAT
by
COOLING SYSTEM
FRONT CAB
1
1
1
1
1
1
1
2
2
2
2
2
3
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
7
8
8
9
10
11
12
12
13
14
14
1
2
3
1
1
2
2
3
4
4
4
5
6
7
8
8
9
1
Cover Front NBU Camo [AT]
5436716455
Not Available
1
Cover Front Camo Green Metallic [AK][AD]
5435352400
Not Available
1
Cover Front NBU Camo [AC](AT)
5435668455
Not Available
1
Cover Front Black Metallic [AU]
5435352177
5436715-177
$173,24 Unit Price incl. VAT
1
Cover Front Painted Sunset Red [AL]
5436717520
Not Available
1
CLIP-TINNERMAN D98640-051M
7661893
$9,44 Unit Price incl. VAT
1
Cover Front Indy Red [AS]
5435352293
$178,49 Unit Price incl. VAT
2
Cab Front Camo Green Metallic [AK]
2632864400
Not Available
2
Asm. Cab Front Black Metallic [AU]
2632864177
$1 154,99 Unit Price incl. VAT
2
Asm. Cab Front Indy Red [AS]
2632864293
2634094-293
$1 154,99 Unit Price incl. VAT
2
Asm. Cab Front NBU Camo [AC]
2632975455
Not Available
2
Asm. Cab Front Painted Sunset Red [AL]
2633176520
Not Available
3
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
4
SCR-1/4-20X1-1/8 HXWHTAP/R-G5Y
7517219
$9,44 Unit Price incl. VAT
5
Asm. Panel/Foil Turbo Silver RH [AL]
2633179402
Not Available
5
Panel Side Black Metallic LH [AX]
5435559177
$293,99 Unit Price incl. VAT
5
Asm. Panel/Foil Black Metallic RH [AK][AN]
2632936177
$335,99 Unit Price incl. VAT
5
Asm. Panel/Foil NBU Camo RH [AC](AT)
2633048455
Not Available
5
Panel Side Black LH [AS]
5435559070
Not Available
5
Panel Side NBU Camo LH [AC](AT)
5435919455
Not Available
5
Asm. Panel/Foil Silver Venom RH [AU]
2632936473
$335,99 Unit Price incl. VAT
5
Asm. Panel/Foil Black RH [AS]
2632936070
$335,99 Unit Price incl. VAT
5
Panel Side Silver Venom LH [AU]
5435559473
$293,99 Unit Price incl. VAT
5
Panel Side Turbo Silver LH [AL]
5436537402
$251,46 Unit Price incl. VAT
6
Foil
5813041
Not Available
6
Foil L Shape
5813031
Not Available
6
Foil Front
5813055
Not Available
7
Clip Snap-In .375 Inch
7080756
$9,44 Unit Price incl. VAT
8
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
9
Guard Splash RH
5248100
$83,99 Unit Price incl. VAT
10
Guard Splash LH/Pump Mount
5246872
$68,24 Unit Price incl. VAT
11
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
12
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
13
WASHER
7556034
$4,19 Unit Price incl. VAT
14
SCR-#10X.75 TR/PH/TAP AB-M
7517561
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
