1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog

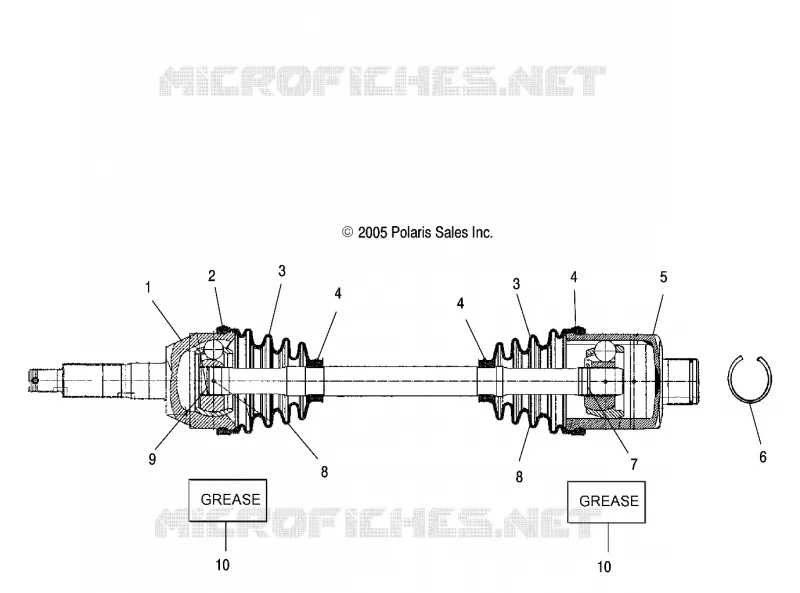

DRIVE REAR SHAFT
5
Parts Diagram
Parts Catalog
TOOL KIT
by
CYLINDER
DRIVE REAR SHAFT
-
1
2
3
3
4
4
4
5
6
7
8
8
9
10
10
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
-
Asm. Drive Shaft Rear [Incl. 1-6]
1332421
1332935
$383,24 Unit Price incl. VAT
1
Joint Plunging
1590415
Not Available
2
Clamp Large
1350044
$8,39 Unit Price incl. VAT
3
Boot
1332433
2202904
$99,74 Unit Price incl. VAT
4
Clamp Small
1350043
$14,69 Unit Price incl. VAT
5
PLUNGING JOINT
1590281
Not Available
6
SPRING-RING
1350042
$5,24 Unit Price incl. VAT
7
Ring Retaining
7710505
Not Available
8
Kit Boot
2203108
2202904
$99,74 Unit Price incl. VAT
9
Ring Retaining
7710576
$13,64 Unit Price incl. VAT
10
Grease 50g
1350047
$27,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
