1
Engine displacement
0
2
Year
1994
3
Trim
SPORTSMAN 4X4 - W948039
4
Parts Catalog

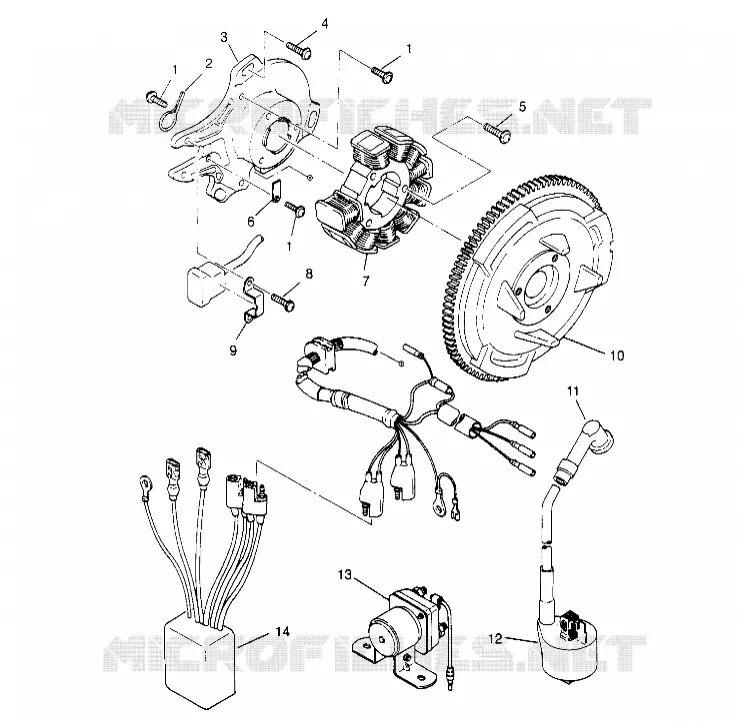

MAGNETO ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684D005)
5
Parts Diagram
Parts Catalog
STARTING MOTOR SPORTSMAN 4X4 W948040 (4926842684D004)
by
FAN MOTOR SPORTSMAN 4X4 W948040 (4926842684D006)
MAGNETO ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684D005)
12
13
14
12
13
14
1
SCREW&WASHER (10)
3081260
Not Available
2
CLAMP
3081146
$2,09 Unit Price incl. VAT
3
PLATE ASM. (Incl. 1 5-9)
3084761
Not Available
3
PLATE COIL
3084762
Not Available
4
SCREW FLANGE (Pilot)
3084766
Not Available
5
SCREW&WASHER ASM(10)
3081342
$2,09 Unit Price incl. VAT
6
CLAMP
3084765
$3,66 Unit Price incl. VAT
7
STATOR
3084763
Not Available
8
SCREW&WASHER ASM.
3084764
Not Available
9
BAND
3084099
Not Available
10
FLYWHEEL W/RING GEAR
3084760
Not Available
11
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
12
COIL IGNITION *
3083923
Not Available
13
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27 28) (Twin ES)
3083211
4011335
$115,49 Unit Price incl. VAT
14
CDI SYSTEM Substituted by 3085087
3084767
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
