Parts Catalog

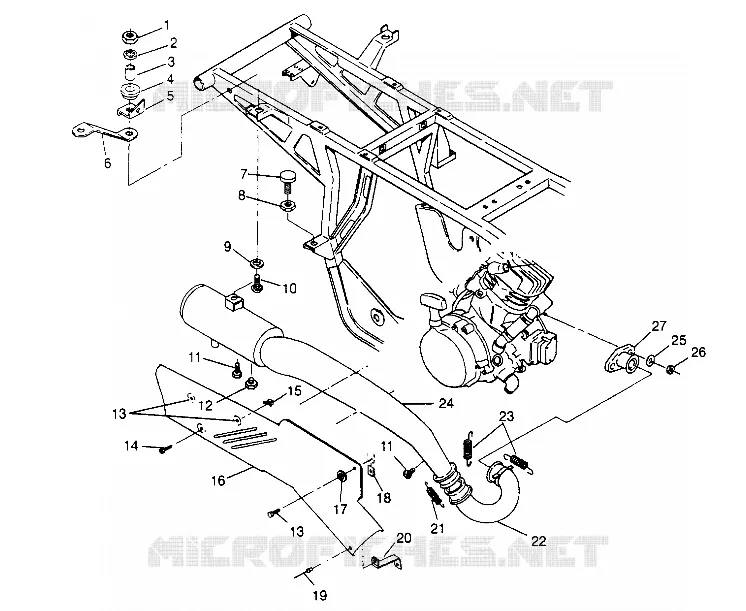

EXHAUST SYSTEM SPORTSMAN 4X4 W948040 (4926842684A010)
5
Parts Diagram
Parts Catalog
FRONT CAB ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684A005)
by
FUEL TANK ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684A011)
EXHAUST SYSTEM SPORTSMAN 4X4 W948040 (4926842684A010)
17
18
19
20
21
22
23
24
25
26
27
17
18
19
20
21
22
23
24
25
26
27
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
3
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
4
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
5
BRKT RH SUPPORT RACK Substituted by 5243469-067
5220901067
Not Available
6
SUPPORT R.FENDER
5220902067
$73,49 Unit Price incl. VAT
7
MOUNT MOTOR
3110030
Not Available
8
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
9
WASHER RUBBER
5410436
$3,14 Unit Price incl. VAT
10
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
11
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
12
PLUG CLEANOUT
7052083
Not Available
13
BOLT BLACK(10)
7512282
$2,09 Unit Price incl. VAT
14
SCREW
7515140
$6,29 Unit Price incl. VAT
15
NUT RETAINER(10)
7542141
Not Available
16
HEATSHIELD ASM. (Incl. 16)
1260620
Not Available
17
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
18
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
19
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
20
BRKT BLK HEATSHIELD
5240179067
Not Available
21
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
22
HEADPIPE WELD.
1260549029
Not Available
23
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
24
EXHAUST WELD BLK (350)
1260588029
Not Available
25
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
26
NUT(10)
3080285
Not Available
27
MANIFOLD BLK.
1260543029
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
