1
Engine displacement
0
2
Year
1994
3
Trim
SPORTSMAN 4X4 - W948039
4
Parts Catalog

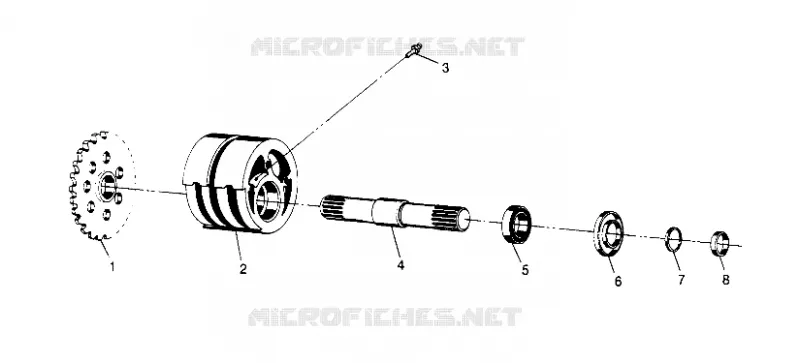

FRONT TIGHTENER ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B002)
5
Parts Diagram
Parts Catalog
FRONT DRIVE ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B001)
by
CV JOINT SPORTSMAN 4X4 W948040 (4926842684B003)
FRONT TIGHTENER ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B002)
1
SPROCKET 22T
3222042
Not Available
3
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
4
SHAFT OUTPUT FRONT
5020527
Not Available
5
BEARING BALL Substituted by 3514402
3514510
$40,94 Unit Price incl. VAT
6
SEAL TIGHTENER
3610017
$57,74 Unit Price incl. VAT
7
O RING
5410463
Not Available
8
SPACER FR.TIGHTENER
5020474
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
