1
Engine displacement
0
2
Year
1994
3
Trim
SPORTSMAN 4X4 - W948039
4
Parts Catalog
HEADLIGHT SPORTSMAN 4X4 W948040 (4926842684A013)
5
Parts Diagram
Parts Catalog
OIL TANK ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684A012)
by
FRONT WHEEL ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B005)

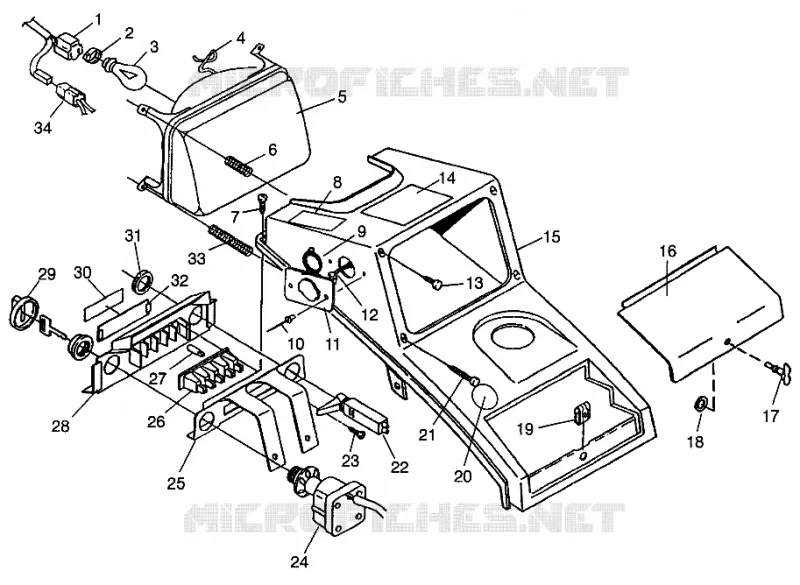

HEADLIGHT SPORTSMAN 4X4 W948040 (4926842684A013)
1
HARNESS HEADLIGHT
2460424
Not Available
2
COVER SOCKET H/L.
4032066
Not Available
3
BULB H/L
4030028
Not Available
4
RETAINER H/L BULB
4032063
Not Available
5
H/L ASM W/BULBSEAL
4032065
Not Available
6
SPRING-ADJ
4032002
Not Available
7
SCREW(10)
7512017
$9,44 Unit Price incl. VAT
8
DECAL WARN#DEM.4#SW. Substituted by 7074935
7072737
Not Available
9
COVER 12VOLT PLUG
5411081
Not Available
10
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
11
POWERPLUG ASM 12V
2410025
Not Available
12
HARNESS 12V OUTLET
2460471
Not Available
13
SCREW ADJ.(10)
4032003
$9,44 Unit Price incl. VAT
14
DECAL CERTIF. ATV Substituted by 7075909
7073464
Not Available
15
COVER OILTANK/HL W/HOLE
5431660
$106,56 Unit Price incl. VAT
16
DOOR ACCESS BLK.
5431201070
$99,95 Unit Price incl. VAT
17
FASTENER 1/4 TURN(10)
7670064
$11,01 Unit Price incl. VAT
18
RING SPLIT RETAINER(10)
7670065
$3,66 Unit Price incl. VAT
19
RECEPTACLE CLIP-ON(10)
7670066
$6,81 Unit Price incl. VAT
20
LOGO #40 YEARS#
7074695
Not Available
21
SCREW ADJUST (ATV)(10)
4032042
Not Available
22
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
$52,49 Unit Price incl. VAT
22
CABLE CHOKE
7080371
$178,49 Unit Price incl. VAT
23
Screw
7511862
Not Available
24
SWITCH IGNITION (See Footnote Below)
4110140
$257,24 Unit Price incl. VAT
25
BRKT IGN. PANEL
5220965067
Not Available
26
STRIP SOCKET
4032037
$43,56 Unit Price incl. VAT
27
BULB
4030042
4080872
$15,74 Unit Price incl. VAT
28
PANEL IGNITION
5430995
Not Available
29
COVER KEY Substituted by 5433534
5431964
5465307
$26,24 Unit Price incl. VAT
30
DECAL PANEL [No Longer Available]
7072528
Not Available
31
Nut Choke Slide
7080229
$36,74 Unit Price incl. VAT
32
LENS ASM PILOT LIGHT
2652049
Not Available
33
SPRING ADJ. (Incl. Bulb Lens & Gasket)
4032041
Not Available
34
HSG DUAL FEMALE
4040024
$6,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
