1
Engine displacement
0
2
Year
1994
3
Trim
SPORTSMAN 4X4 - W948039
4
Parts Catalog

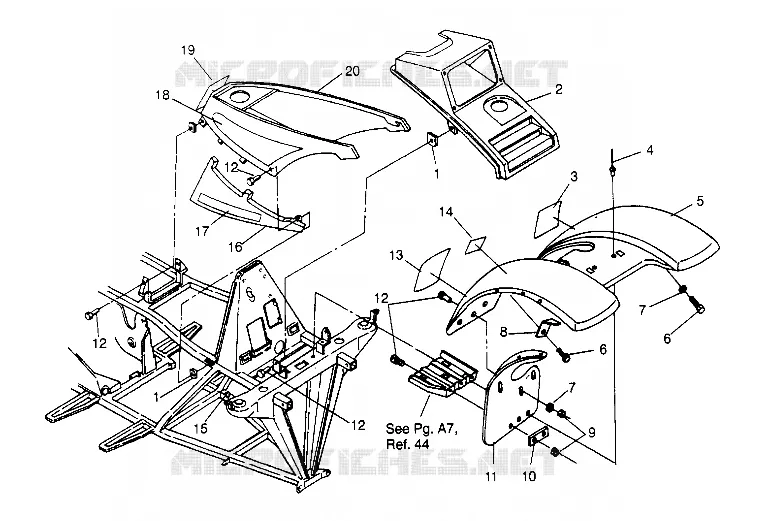

FRONT CAB ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684A005)
5
Parts Diagram
Parts Catalog
RECOIL STARTER SPORTSMAN 4X4 W948040 (4926842684D003)
by
EXHAUST SYSTEM SPORTSMAN 4X4 W948040 (4926842684A010)
FRONT CAB ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684A005)
15
16
16
16
16
17
18
18
18
18
19
20
15
16
16
16
16
17
18
18
18
18
19
20
15
16
17
18
19
20
1
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
2
COVER OILTANK/HL W/HOLE
5431660
$106,56 Unit Price incl. VAT
3
DECAL WARNING(CPSC) [No Longer Available]
7072693
Not Available
4
RIVET-POP 3/16 (.376-.500) AL-LFB
7621460
$2,09 Unit Price incl. VAT
5
CAB ASM FR GRN (4W) (Incl. 3 13)
2631610191
Not Available
6
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
7
WASHER-FL .281X.750X.062-Y
7555859
$2,09 Unit Price incl. VAT
8
BRKT FENDER/MUFFLER Substituted by 5222665
5222665067
Not Available
9
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
10
BRKT LH MUD FLAP
5211131067
Not Available
10
BRKT RH MUD FLAP
5211020067
Not Available
11
MUDFLAP RH FRT.(350-6X6)
5850106
Not Available
11
MUDFLAP LH FRT.(350-6X6)
5850105
Not Available
12
BOLT BLACK(10)
7512282
$2,09 Unit Price incl. VAT
13
DECAL WARN(CPSC) DISCRET.
7074608
Not Available
14
DECAL SHIFT PATTERN
7074207
Not Available
15
PLUG RUBBER-HOLE .5DIA(10) Substituted by 5411426
5410012
Not Available
16
COVER LH PANEL BLK. Substituted by 5433382-070
5430970070
Not Available
16
COVER RH PANEL BLK. Substituted by 5433579-070
5430971070
Not Available
17
DECAL #POLARIS#SIDEPANEL
7073808
Not Available
18
DECAL LH TANKSIDE
7074240
Not Available
18
DECAL RH TANKSIDE
7074241
Not Available
19
DECAL(CPSC) AGE WARN. Substituted by 7074827
7072933
Not Available
20
COVER FUELTANK OLV.GRN.
5431263191
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
