1
Engine displacement
900
2
Year
2017
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog

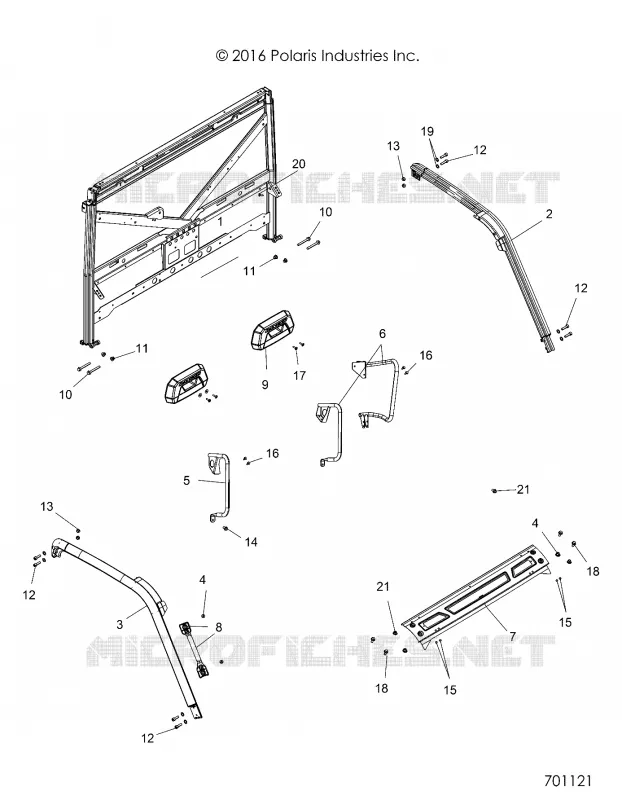

CHASSIS, CAB FRAME
5
Parts Diagram
Parts Catalog
BRAKES, REAR CALIPER
by
DRIVE TRAIN, FRONT PROP SHAFT
CHASSIS, CAB FRAME
1
2
3
4
4
5
6
6
7
8
9
10
10
11
11
12
12
12
12
13
13
14
15
15
16
16
17
18
18
19
20
21
21
1
2
3
4
5
6
7
7
8
1
FRAME CAB REAR MATTE BLACK
1021852458
$1 905,74 Unit Price incl. VAT
2
WELD-CAB FRAME FRT LH 17 M BLK
1022353458
$661,49 Unit Price incl. VAT
3
WELD-CAB FRAME FRT RH 17 M BLK
1022354458
$661,49 Unit Price incl. VAT
4
SCR-TFHFL-M8X1.25X20 CHS ZOD
7518555
$4,19 Unit Price incl. VAT
5
WELD BOLSTER RH REAR BLK
1022617458
$157,49 Unit Price incl. VAT
6
WELD BOLSTER LH REAR BLK
1022616458
$157,49 Unit Price incl. VAT
6
WELD-BOLSTER SEAT BLK [VE99AS/BS][VE99AX/BX]
1022618458
$645,74 Unit Price incl. VAT
7
PLATE-WNDSHLD MNT UPR 17 MBLK
5262569458
2207932
$335,99 Unit Price incl. VAT
8
HANDLE-GRAB ROPS BLK
5450844070
$62,99 Unit Price incl. VAT
9
HEADREST BLACK
5439110070
$120,74 Unit Price incl. VAT
10
SCR-HXFL-M10X1.25X80 8.8 ZOD
7519363
7528444
$4,19 Unit Price incl. VAT
11
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
12
SCR-SH-M10X1.5X35 8.8 ZPB
7519959
$3,14 Unit Price incl. VAT
13
NUT-NYLOCK M10X1.5 REF 0600110
7547268
$2,09 Unit Price incl. VAT
14
SCREW-HXFL-M8X1.25X20 8.8 ZOD P3
7519133
$3,14 Unit Price incl. VAT
15
PLUG FENDER REAR
7671178
$3,66 Unit Price incl. VAT
16
SCR-TXTH-M6X1.0X25 ZFB
7519650
$7,34 Unit Price incl. VAT
17
RIVET-POP 3/16 (.376-.500) AL-LFB
7621460
$2,09 Unit Price incl. VAT
18
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
$3,14 Unit Price incl. VAT
19
WASHER
7555923
$4,19 Unit Price incl. VAT
20
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
21
NUT-M10X1.5 HXFLG NYLON INS
7547313
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
