1
Engine displacement
900
2
Year
2017
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
CYLINDER AND HEAD
5
Parts Diagram
Parts Catalog
ELECTRICAL, HARNESS
by
ENGINE, ENGINE MOUNTING

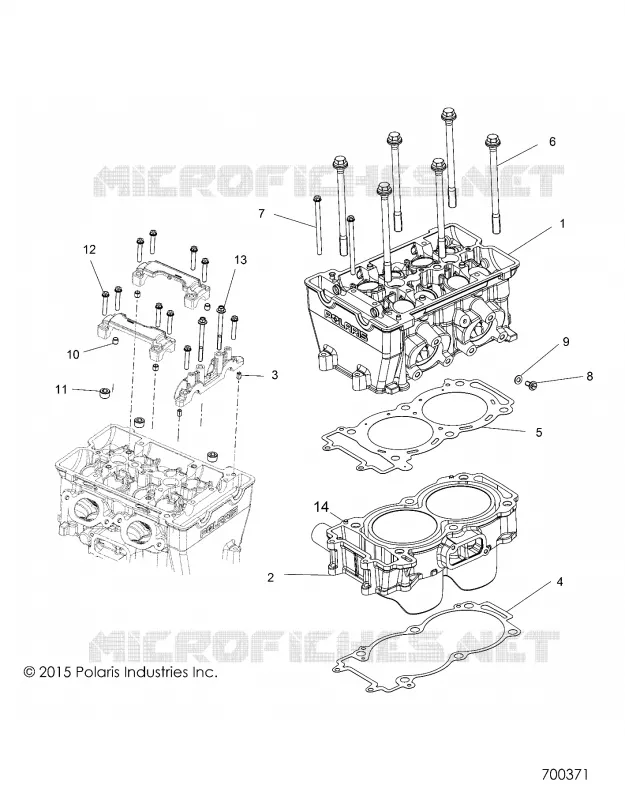

CYLINDER AND HEAD
1
2
14
4
5
6
6
7
8
9
10
11
12
13
14
1
ASM-HEAD MACHINED DOHC [INCL. 6-15][FROM 11/30/2020][TO 1/22/2021]
3022441
3024248
$1 753,49 Unit Price incl. VAT
2
ASM-CYLINDER 875 [INCL. 11]
3023155
3023800
$801,14 Unit Price incl. VAT
3
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
4
GASKET BASE 2 CYL
5253037
$57,74 Unit Price incl. VAT
5
GASKET CYLINDER HEAD [TO 5/2/2022]
5813737
5814793
$110,24 Unit Price incl. VAT
6
SCR-HXFL-M11X1.25X150 10.9 SEM
7519123
7520978
$41,99 Unit Price incl. VAT
7
SCR-HXFLG M6X1.0X90
7519153
$10,49 Unit Price incl. VAT
8
SCR-M6X1.0X13 SL/HX/FL-Z BLEED
7520470
$9,44 Unit Price incl. VAT
9
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
10
DOWEL HOLLOW M8X8
7661977
$15,74 Unit Price incl. VAT
11
PLUG-3/8 NPT HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
12
SCR-HXFL-M6X1.0X35 10.9 ZY3 [FROM 11/30/2020][TO 1/22/2021]
7519996
7520689
$14,69 Unit Price incl. VAT
13
SCR-HXFL M6X1.0X70 B18.2.3.4M [USED WITH 3022716]
7519197
$1,56 Unit Price incl. VAT
14
PIN DOWEL M6x10
5132835
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
