1
Engine displacement
900
2
Year
2017
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
SEAT, 60/40
5

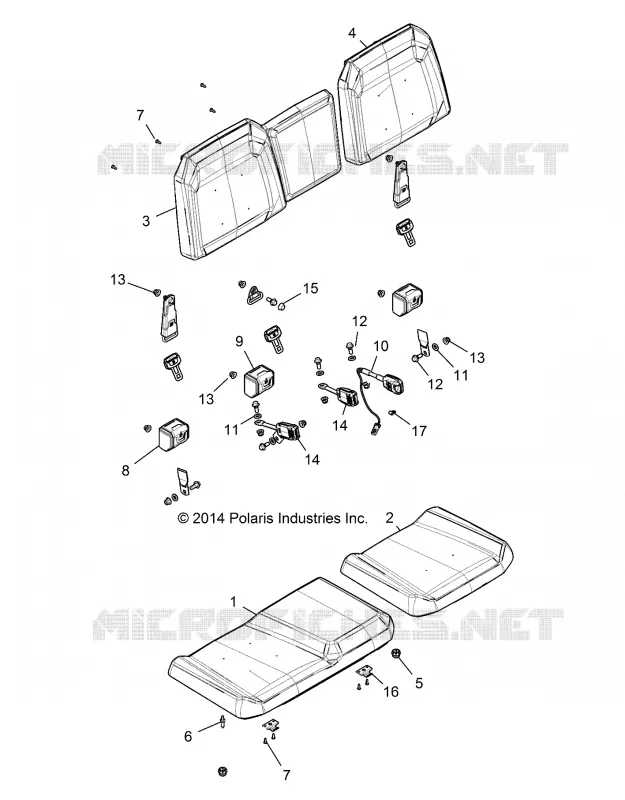

Parts Diagram
Parts Catalog
WHEELS, REAR
by
SLIDER DRIVERS SEAT
SEAT, 60/40
1
2
3
4
5
6
7
7
8
9
10
11
11
12
12
13
13
13
14
14
15
16
17
1
ASM-SEAT BTM 60 BLK/DK.MARC [INCL. 3 QTY 8 OF 4 QTY 2 OF 5][VE99AS/BS][VE99AX/BX][TO 3/18/2018]
2686922
$729,74 Unit Price incl. VAT
2
ASM-SEAT BTM 40 BLK/DK.MARC DS [VE99AS/BS][VE99AX/BX][TO 3/18/2018]
2687527
$629,99 Unit Price incl. VAT
3
ASM-SEAT BACK 60 BLK/DK.MARC [VE99AS/BS][VE99AX/BX][TO 3/18/2018]
2686920
Not Available
4
ASM-SEAT BACK 40 BLK/DK.MARC [VE99AS/BS][VE99AX/BX][3/18/2018]
2686921
$593,24 Unit Price incl. VAT
5
GROMMET
5439179
$12,59 Unit Price incl. VAT
6
PIN-SEAT LATCH
5910404
$41,99 Unit Price incl. VAT
7
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
8
ASM. SEAT BELT 3 POINT CENTER
2635052
2638784
$330,74 Unit Price incl. VAT
9
ASM. SEAT BELT 3 POINT
2635118
2638785
$467,24 Unit Price incl. VAT
10
BUCKLE-SEATBELT 90 SWITCH
2635609
2637304
$204,74 Unit Price incl. VAT
11
WASHER-SEATBELT RUBBER
5813829
$2,09 Unit Price incl. VAT
12
SCR-HXFLSH-M12X1.75-M14X9 ZOD
7519770
$8,39 Unit Price incl. VAT
13
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
$9,44 Unit Price incl. VAT
14
BUCKLE-SEATBELT 9.6 PASSENGER
2635235
$125,99 Unit Price incl. VAT
15
CAP BOLT HEAD
5450708
$19,94 Unit Price incl. VAT
16
BRACKET SEAT HINGE
5256836
$19,94 Unit Price incl. VAT
17
CLAMP WIRE/TUBE .25 DIA
7081246
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
