1
Engine displacement
900
2
Year
2017
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
ELECTRICAL, SENSORS AND MODULES
5

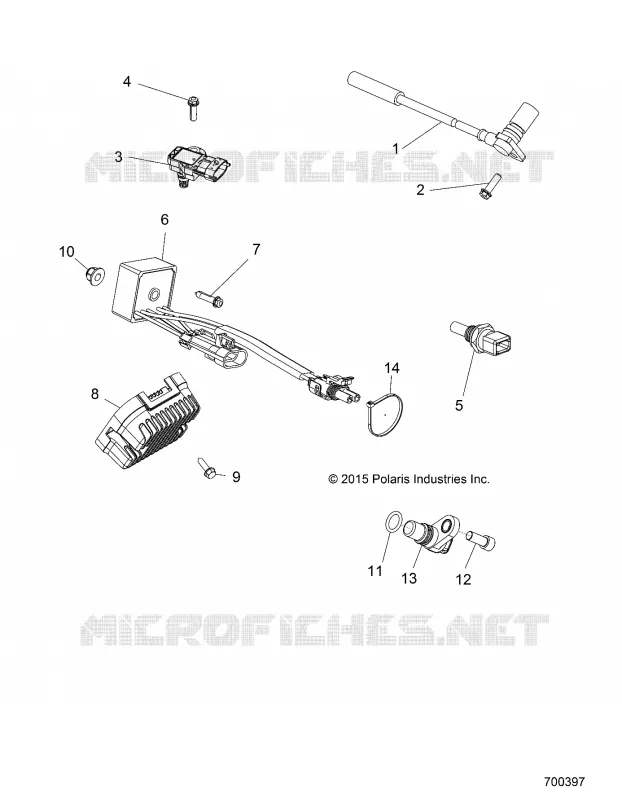

Parts Diagram
Parts Catalog
ELECTRICAL, IGNITION
by
COOLING, WATERPUMP
ELECTRICAL, SENSORS AND MODULES
1
2
3
2
5
6
7
8
8
9
10
11
12
13
14
1
2
3
2
5
1
SENSOR CRANK POSITION
2411719
$194,24 Unit Price incl. VAT
2
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
3
SENSOR-TMAP DSS3-TF
2411528
$178,49 Unit Price incl. VAT
4
SCREW-HXFL-M6X1.0X20 8.8 ZY3
7518576
$6,29 Unit Price incl. VAT
5
SENSOR-THERMISTER
4010644
$141,74 Unit Price incl. VAT
6
RELAY SOLID STATE 9 AMP LONG LD
4012829
4081742
$141,74 Unit Price incl. VAT
7
BOLT-M6X1.0X35 HXFLG/SH-OLV D
7518612
$9,44 Unit Price incl. VAT
8
REGULATOR 3 PHASE 50 AMP SERIES
4014856
4016868
$246,74 Unit Price incl. VAT
8
REGULATOR-3PH 50A SERIES HISPD
4016868
$246,74 Unit Price incl. VAT
9
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
10
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
11
O-RING
3234302
$13,64 Unit Price incl. VAT
12
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
13
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
14
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
