1
Engine displacement
900
2
Year
2017
3
Trim
RANGER XP 900 ALL OPTIONS
4
Parts Catalog
ELECTRICAL, IGNITION
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SHIFT LEVER AND CABLE
by
ELECTRICAL, SENSORS AND MODULES

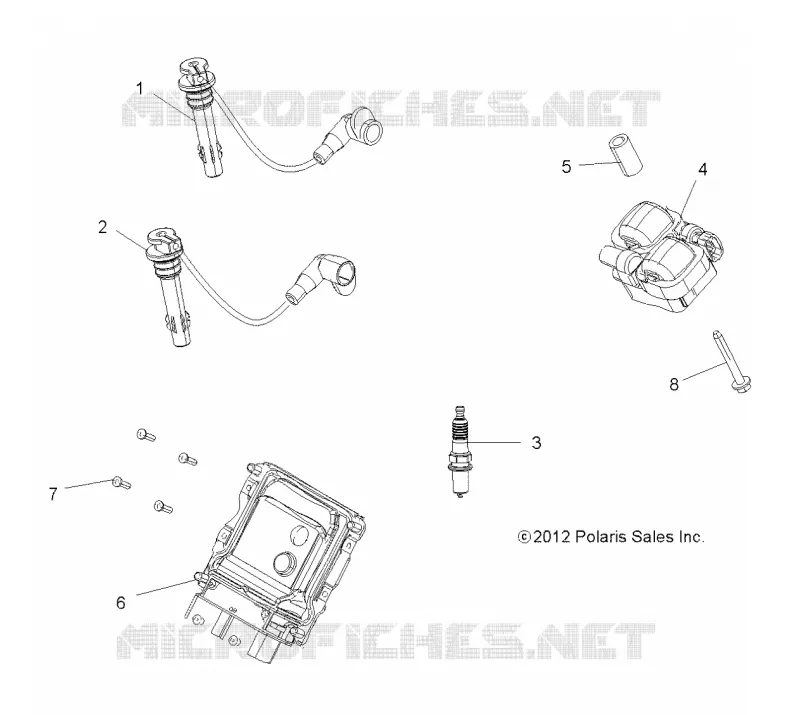

ELECTRICAL, IGNITION
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
WIRE-SPARKPLUG MAG 90DEG
4014032
4017692
$136,49 Unit Price incl. VAT
2
WIRE-SPARKPLUG PTO 90DEG
4014033
4017693
$136,49 Unit Price incl. VAT
3
SPARK PLUG-10 MM
3022662
$17,84 Unit Price incl. VAT
4
COIL-EFI
4010425
2876049
$451,49 Unit Price incl. VAT
5
SPACER-COIL FRONTIER
5133658
$13,64 Unit Price incl. VAT
6
ECM-HARD ME17 2CYL 250K
4014125
$1 123,49 Unit Price incl. VAT
7
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
8
SCR-HXFL-M6X1.0X50 TDFM ZPB
7519090
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
