Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 2X4 HDS - A02CB50FC
4
Parts Catalog
OIL TANK (IF BUILT AFTER 1/02/02)
5

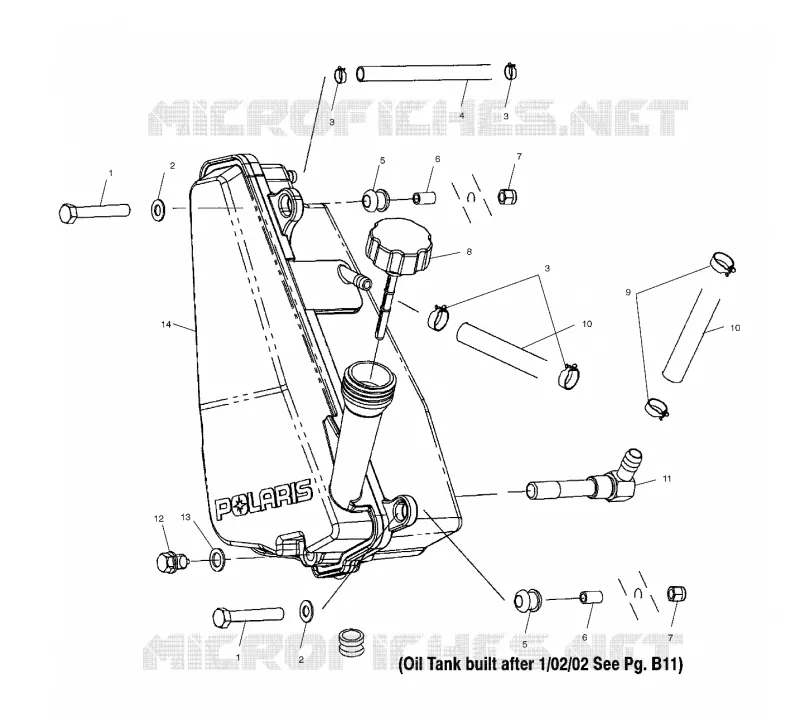

Parts Diagram
Parts Catalog
FUEL PUMP
by
OIL TANK (IF BUILT AFTER 1/02/02)
1
1
2
2
3
3
3
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
1
1
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
1
SCR-HH-1/4-20X1.75 GR5 ZY3
7512130
$7,34 Unit Price incl. VAT
2
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
3
Clamp Hose Spring .69 Inch
7080699
$3,14 Unit Price incl. VAT
4
Line Breather
5411668
Not Available
5
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
6
Bushing
5333204
$41,99 Unit Price incl. VAT
7
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
8
Dipstick
5434308
Not Available
9
CLAMP-HOSE SPRING .81
7081026
$14,69 Unit Price incl. VAT
10
Line
845009616
Not Available
11
Screen Oil Filter 90 Degree
7052326
$83,99 Unit Price incl. VAT
12
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
13
WASHER
5850135
$5,76 Unit Price incl. VAT
14
Tank Oil
1261176
1261653
$509,24 Unit Price incl. VAT
