MAGNUM 500 2X4 HDS - A02CB50FC
4
Parts Catalog
COOLING SYSTEM
5

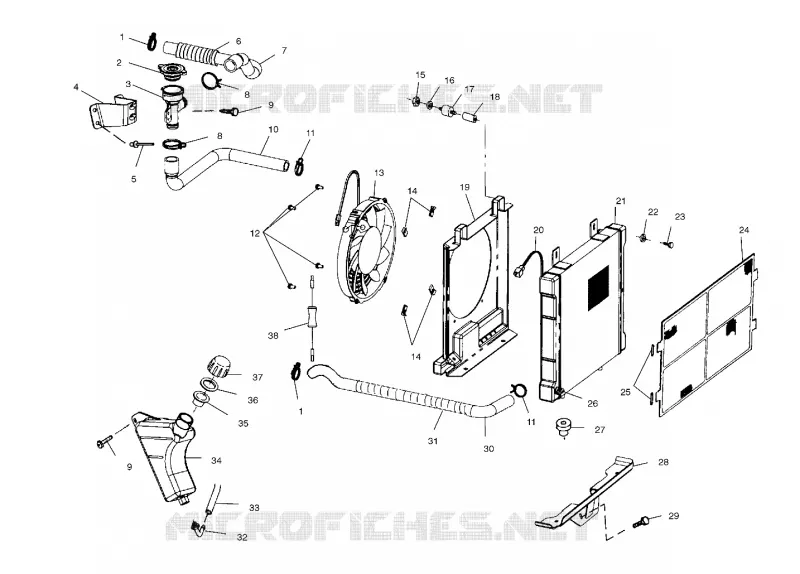

Parts Diagram
Parts Catalog
DECALS
by
EXHAUST SYSTEM
COOLING SYSTEM
1
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
1
1
1
1
2
2
2
2
2
2
3
3
4
4
4
5
5
6
6
7
7
8
8
8
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
1
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
2
Cap Pressure
1240044
1240508
$89,24 Unit Price incl. VAT
3
FILLER-REMOTE COOLANT
5433364
$73,49 Unit Price incl. VAT
4
BRKT REMOTE COOLANT FILL
5243505067
Not Available
5
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
6
Flexguard
5433948
Not Available
7
Hose Engine Upper
5411794
Not Available
8
Clamp [If built before 11/01/04]
7080827
7080843
$7,34 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
Hose Neck Filler
5411632
Not Available
11
Clamp Roto Clip
7080826
$9,44 Unit Price incl. VAT
12
Screw
7517659
$7,34 Unit Price incl. VAT
13
Asm. Fan and Motor
2410123
$289,79 Unit Price incl. VAT
14
U-Clip
7670111
Not Available
15
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
16
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
17
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
18
Spacer
5132648
$12,80 Unit Price incl. VAT
19
Shroud Fan
5433059
Not Available
20
Sensor Thermal w/Harness
4010161
$204,74 Unit Price incl. VAT
21
Radiator
1240045
Not Available
22
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
23
BOLT
7512113
$7,34 Unit Price incl. VAT
24
Cover Radiator w/Mesh
5433317
$56,69 Unit Price incl. VAT
25
O-Ring
5410607
Not Available
26
O-Ring
5411633
Not Available
26
Valve Plastic Radiator/Cooler Drain
7052296
Not Available
27
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
28
Bracket Radiator Lower
5244687067
Not Available
29
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
30
Hose Engine Lower
5411694
Not Available
31
Guard Hose
5521511
$11,96 Unit Price incl. VAT
32
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
33
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
34
Tank Surge
5433410
Not Available
35
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
36
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
37
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
38
Breaker Circuit 10 AMP
4010369
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
