Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 2X4 HDS - A02CB50FC
4
Parts Catalog

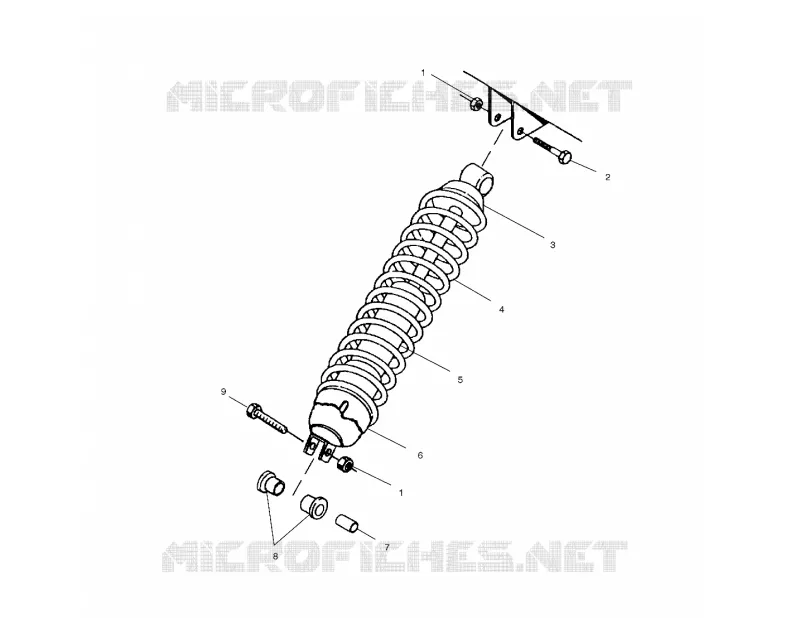

SHOCK MOUNTING
5
Parts Diagram
Parts Catalog
REAR WHEEL DRIVE
by
GEAR SELECTOR MOUNTING
SHOCK MOUNTING
1
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
2
SCREW
7515415
$2,09 Unit Price incl. VAT
3
RETAINER SHOCK
5241147
5251753
$19,94 Unit Price incl. VAT
4
Spring Compression
7041815067
Not Available
5
Shock
7041964
$230,99 Unit Price incl. VAT
6
Cam Adjusting Spring
5630551
$68,24 Unit Price incl. VAT
7
Tube
5132021
Not Available
8
Bushing
5433212
Not Available
9
BOLT
7515438
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
