Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 2X4 HDS - A02CB50FC
4
Parts Catalog

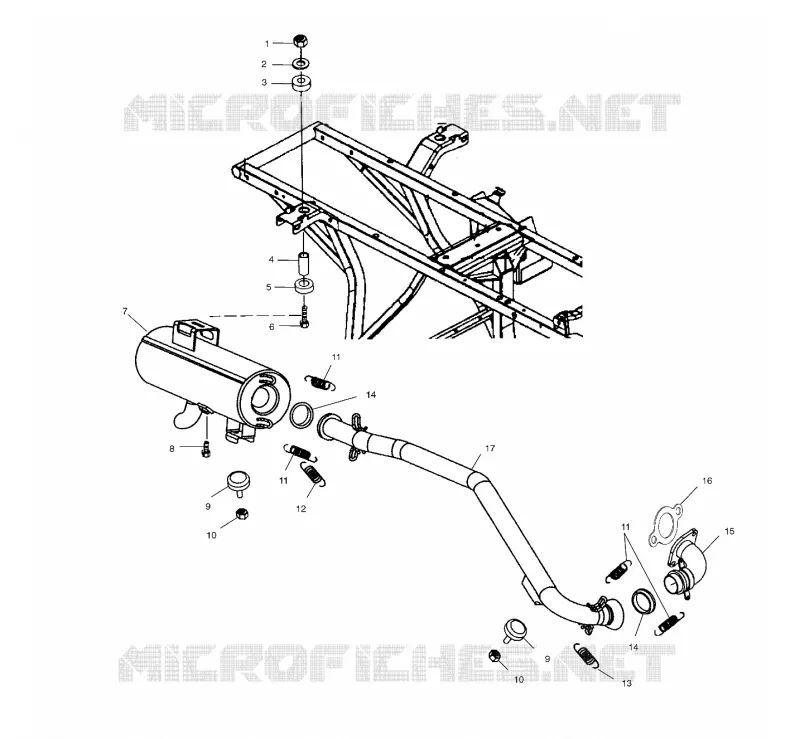

EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
DRIVE SHAFT
EXHAUST SYSTEM
1
2
3
4
5
6
7
8
9
9
10
10
11
11
11
12
13
14
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
6
7
7
8
9
9
10
10
11
12
13
14
15
16
17
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
3
WASHER RUBBER
5410436
$3,14 Unit Price incl. VAT
4
Bushing
5132295
Not Available
5
Dampener Vibration
5411790
Not Available
6
SCREW CARRIAGE
7515394
$7,34 Unit Price incl. VAT
7
Silencer
1260961029
$598,49 Unit Price incl. VAT
8
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
$4,19 Unit Price incl. VAT
9
Mount Torque Stop
3110064
Not Available
10
NUT-5/16-18-FULL HT-Y
7542301
$3,14 Unit Price incl. VAT
11
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
12
SPRING-EXHAUST
7041789
$16,79 Unit Price incl. VAT
13
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
14
SEAL EXHAUST
5243517
$31,49 Unit Price incl. VAT
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
GASKET-EXHAUST
3086237
Not Available
17
Headpipe
1260987029
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
