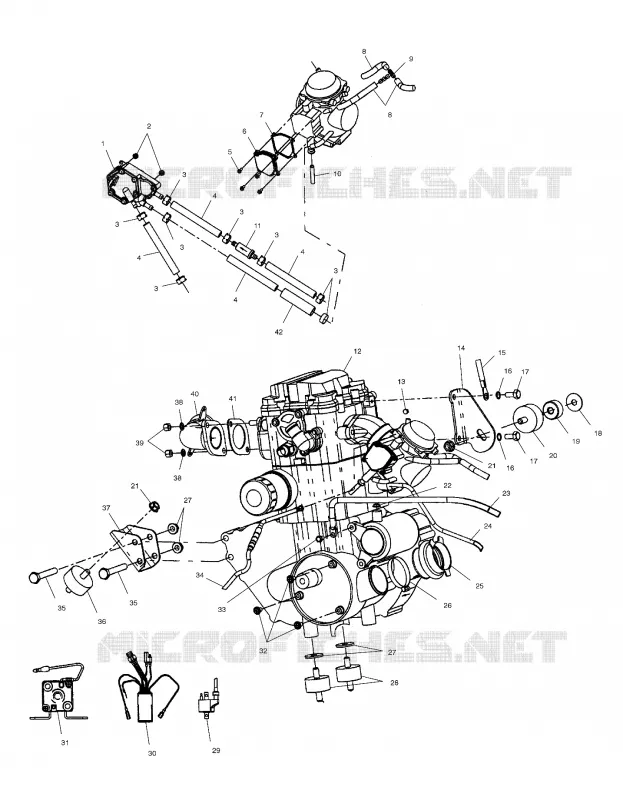

Parts Diagram
Parts Catalog
CONTROLS
by
FUEL TANK AND CARBURETOR MOUNTING
ENGINE MOUNTING
1
2
3
3
3
3
3
3
3
4
4
4
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
21
22
23
24
25
26
27
27
28
29
30
30
32
33
34
35
35
36
37
38
38
39
40
41
42
1
2
3
4
4
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
1
Asm. Fuel Pump [Incl. 1-4]
3085275
2520227
$146,99 Unit Price incl. VAT
2
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
3
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
4
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
5
SCREW
3130535
$13,64 Unit Price incl. VAT
6
COVER
3130511
$83,99 Unit Price incl. VAT
7
O-RING
3130512
Not Available
8
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
9
FITTING-TEE 1/4-1/4-BRB-NY
7052075
$17,84 Unit Price incl. VAT
10
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
11
FILTER
2530009
$12,59 Unit Price incl. VAT
12
ENG.(S.B.)EH50PLE-01 (EH50PLE03) NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization require
3085556
Not Available
13
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
14
Mount Engine Top
5242936067
$9,23 Unit Price incl. VAT
15
CABLE GND-ENGINE
4010132
Not Available
16
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
17
Bolt
7512315
$9,44 Unit Price incl. VAT
18
WASHER-.390X1.12X.060 FL-Y
7555823
$7,34 Unit Price incl. VAT
19
Spacer
5132007
Not Available
20
Mount Rubber
3021045
Not Available
21
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
22
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
23
Cable Battery/Engine
4010095
Not Available
24
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
25
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
26
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
27
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
28
Mount Rubber Rear
3021119
Not Available
29
COIL IGNITION (Incl. 1 2)
3084690
Not Available
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
31
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
32
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
33
ASM. BOLT AND WASHER
3082038
$7,34 Unit Price incl. VAT
34
Cable Choke
7081008
$152,24 Unit Price incl. VAT
35
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT
36
Mount Rubber
3110044
3024012
$83,99 Unit Price incl. VAT
37
Mount Engine Lower Front
5242818067
$51,54 Unit Price incl. VAT
38
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
39
NUT(10)
3080285
Not Available
40
Manifold
1260978029
Not Available
41
GASKET EXH.
3085075
$73,49 Unit Price incl. VAT
42
Sheath Foil Laminated
845008018
$120,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
