Parts Catalog
CONTROLS
5

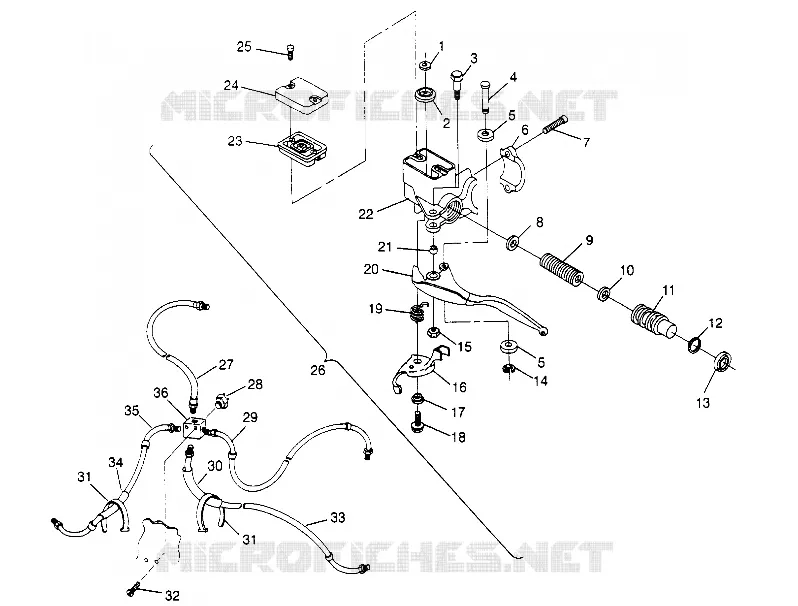

Parts Diagram
Parts Catalog
CONTROLS
by
CENTER TIGHTENER ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B012)
CONTROLS
1
WASHER BAFFLE(10)
1930662
Not Available
2
BAFFLE MASTER CYL.
1930673
Not Available
3
BOLT BRAKE LEVER(10)
7512287
Not Available
4
PIN BRAKELEVER ROLLER (#J# Model Only)
7661627
Not Available
5
ROLLER BRAKE LEVER (#J# Model Only)
5020598
Not Available
6
CLAMP MASTER CYL.
5630342
Not Available
7
SCREW SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
8
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
9
SPRING MASTERCYL.
7041311
Not Available
10
SEALCUP MASTER CYL. Substituted by 5410994
5410784
Not Available
11
PISTON MASTER CYL.
5020671
$89,24 Unit Price incl. VAT
12
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
13
SEAL OIL
3610022
Not Available
14
RING RETAINING(10) (#J# Model Only)
7710425
Not Available
15
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
16
LEVER PARKBRAKE ATV
5240865
Not Available
17
BUSHING PK.BRAKE LEVER
5020670
Not Available
18
Screw [M-10 ACE]
7511876
Not Available
19
SPRING PK.BRAKE
7041229
$62,99 Unit Price incl. VAT
20
LEVER BRAKE (ATV)
5630455
Not Available
21
BUSHING BRAKE LEVER
5332931
Not Available
22
HOUSING MASTERCYL. (US)
5130955
Not Available
23
GASKET MASTER CYL.
5410527
$13,64 Unit Price incl. VAT
24
COVER MASTER CYL.
5630338
Not Available
25
SCREW W/WASHER(10)
7512050
$7,34 Unit Price incl. VAT
26
MASTER CYL.ASM. Substituted by 2050073
2050062
2050073
$456,74 Unit Price incl. VAT
27
LINE BRAKE UP./FTGS.
1930748
$167,99 Unit Price incl. VAT
28
SWITCH-BRK 1/8#-27 NPTF SEALED [BRAKE LIGHTS]
4110164
2890637
$325,49 Unit Price incl. VAT
29
LINE BRAKE REAR
1930751
Not Available
30
CONDUIT 30 CM. Substituted by 8360011-34
836003130
Not Available
31
STRAP BLK
7080272
Not Available
32
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
33
LINE BRAKE LH FR W/FITTINGS
1930752
$167,99 Unit Price incl. VAT
34
CONDUIT 38 CM.
836003138
$4,29 Unit Price incl. VAT
35
LINE BRAKE RH FR.W/FITTINGS
1930753
$167,99 Unit Price incl. VAT
36
FITTING CROSS INVERT.FLARE
7052103
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
