OIL PUMP SPORTSMAN 4X4 W948040 (4926842684D001)
5
Parts Diagram
Parts Catalog
WATER PUMP SPORTSMAN 4X4 W948040 (4926842684C014)
by
CARBURETOR SPORTSMAN 4X4 W948040 (4926842684D002)

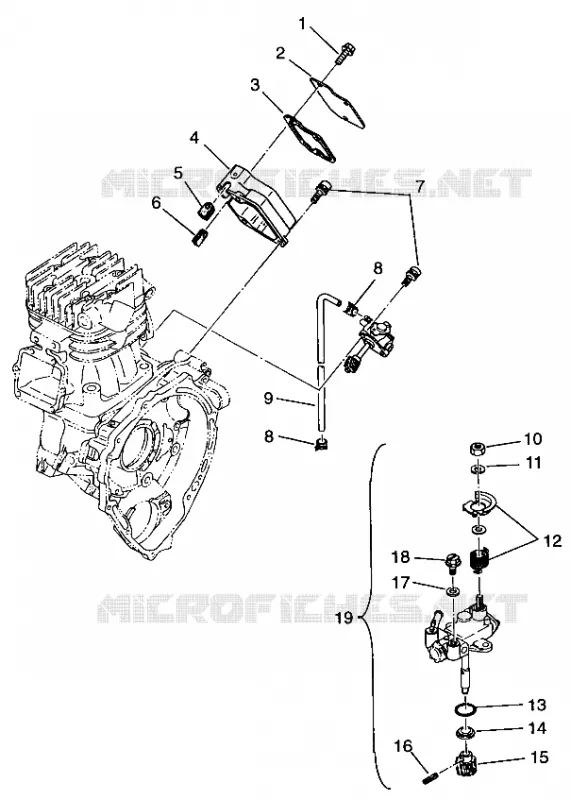

OIL PUMP SPORTSMAN 4X4 W948040 (4926842684D001)
1
BOLT&WASHER ASM.(10)
3084757
$5,24 Unit Price incl. VAT
2
COVER (Oil Pump Case)
3084204
Not Available
3
GASKET OIL PUMP
3084401
Not Available
4
CASE OIL PUMP (Oil Pump)
3084756
Not Available
5
GROMMET Substituted by 3086777
3084201
Not Available
6
GROMMET Substituted by 3086779
3084758
Not Available
7
SCREW&WASHER (10)
3083783
$4,19 Unit Price incl. VAT
8
CLAMP HOSE
3083141
$2,09 Unit Price incl. VAT
9
PIPE RUBBER Substituted by 3086776
3084199
Not Available
10
NUT
3083120
$6,29 Unit Price incl. VAT
11
WASHER SPRING
3083121
1205792
$614,24 Unit Price incl. VAT
12
SPRING&LEVER SET(FOR 3085285)
3085571
Not Available
13
O RING
3083127
Not Available
14
SPACER
3084195
Not Available
15
WHEEL
3084196
Not Available
16
PIN SPRING
3084197
Not Available
17
WASHER
3084194
$11,01 Unit Price incl. VAT
18
SCREW-AIR VENT
3083125
Not Available
19
PUMP OIL (Incl. 10-18)
3084755
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
