1
Engine displacement
0
2
Year
1994
3
Trim
W948040 - W948040
4
Parts Catalog

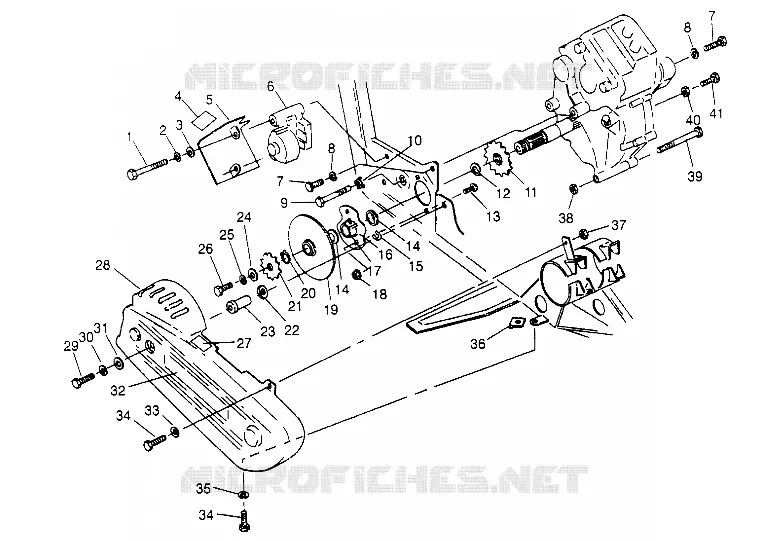

GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 4X4 W948040 (4926842684C003)
5
Parts Diagram
Parts Catalog
CENTER TIGHTENER ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684B012)
by
REAR BRAKE SPORTSMAN 4X4 W948040 (4926842684C004)
GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 4X4 W948040 (4926842684C003)
1
BOLT(10)
7515345
$10,49 Unit Price incl. VAT
2
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
3
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
4
DECAL(CPSC) BRAKE SHIELD Substituted by 7075339
7072790
Not Available
5
SHIELD R.CALIPER BLK.
5240149067
Not Available
6
CAL.ASM REAR BRAKE Substituted by 1910180
1910156
Not Available
7
BOLT(10)
7515522
$7,34 Unit Price incl. VAT
8
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
BOLT CARRIAGE(10)
7515484
Not Available
14
SEAL BRAKE
3610026
Not Available
15
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
15
SHIM CHAINCASE .010
5211065
$52,49 Unit Price incl. VAT
15
SHIM CHAINCASE .020
5210764
$15,74 Unit Price incl. VAT
16
BRG.ASM O/P SHAFT
1590237
$114,44 Unit Price incl. VAT
17
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
18
NUT
7542449
$7,34 Unit Price incl. VAT
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
23
SPACER CHAIN GUARD
5333244
Not Available
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
DECAL LUBRICATION
7074214
Not Available
28
GUARD CHAIN CTR.
5431717
Not Available
29
SCREW
7515346
$10,49 Unit Price incl. VAT
30
WASHER(10)
7552606
$9,44 Unit Price incl. VAT
31
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
32
DECAL DEMAND 4 DRIVE
7074226
Not Available
33
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
34
BOLT(10)
7512269
Not Available
35
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
36
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
37
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
38
Nut
7542403
Not Available
39
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
40
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
41
BOLT(10)
7515485
$5,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
