Parts Catalog
GEARCASE ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684C007)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684C002)
by
ELECTRICAL/TAILLIGHT ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684C009)

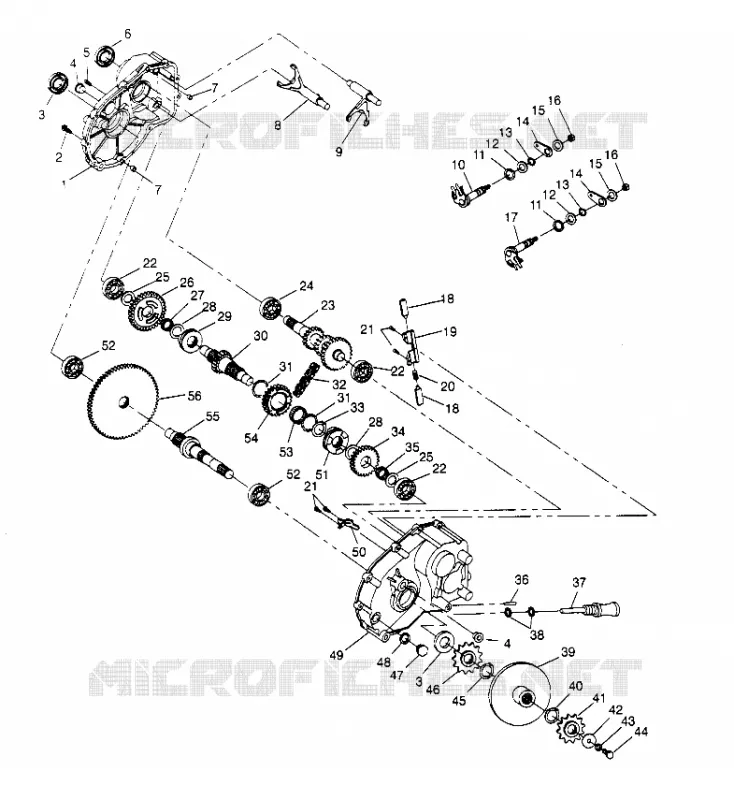

GEARCASE ASSEMBLY SPORTSMAN 4X4 W948040 (4926842684C007)
-
GEARCASE ASM.13/11 Substituted by 1341146 (Incl. 1-56)
1341136
Not Available
1
CASE LH
3233002
Not Available
2
SCREW
3233026
$12,59 Unit Price incl. VAT
3
SEAL Substituted by 3233248
3233096
3233788
$57,74 Unit Price incl. VAT
4
BUSHING PIVOT
3233024
Not Available
5
STUD
3233025
Not Available
6
SEAL Substituted by 3233248
3233097
3233788
$57,74 Unit Price incl. VAT
7
PIPE KNOCK
3233021
Not Available
8
SHIFTRAIL LOW
3233022
Not Available
9
SHIFTRAIL HIGH/REV.
3233023
Not Available
10
SHAFT LOW SHIFT
3233038
Not Available
11
O-RING Substituted by 3233548
3233044
$52,49 Unit Price incl. VAT
12
WASHER
3233040
$17,84 Unit Price incl. VAT
13
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
14
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
15
WASHER
3233054
$12,59 Unit Price incl. VAT
16
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
17
SHAFT HI/REV SHIFT
3233039
Not Available
18
PIN
3233031
$51,44 Unit Price incl. VAT
19
BRACKET
3233030
$34,32 Unit Price incl. VAT
20
SPRING
3233032
$26,24 Unit Price incl. VAT
21
SCREW Substituted by 3233747
3233033
Not Available
22
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
23
SHAFT INPUT
3233122
Not Available
24
BEARING
3233019
$54,59 Unit Price incl. VAT
25
WASHER
3233007
Not Available
26
GEAR 33T
3233125
Not Available
27
BEARING NEEDLE SPLIT CAGE 22 X 26 X 10
3233009
$68,24 Unit Price incl. VAT
28
WASHER
3233010
Not Available
29
DOG ENGAGEMENT LOW
3233126
Not Available
30
SHAFT REVERSE
3233124
Not Available
31
WASHER
3233012
Not Available
32
CHAIN SILENT 34P
3233036
Not Available
33
RING RETAINING
3233029
$10,49 Unit Price incl. VAT
34
GEAR 25T
3233129
Not Available
35
BEARING BALL
3233017
$60,89 Unit Price incl. VAT
36
VENT
3233037
Not Available
37
DIPSTICK Substituted by 3233115
3233034
$52,49 Unit Price incl. VAT
38
O-RING
3233053
Not Available
39
DISC BRAKE Substituted by 1910177
1910148
Not Available
40
RING RETAINING(10)
7710433
$9,44 Unit Price incl. VAT
41
SPKT 11T
3221058
$115,49 Unit Price incl. VAT
42
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
43
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
44
BOLT(10)
7515321
Not Available
45
RING RETAINING(10) Substituted by 7710434
3233047
7710434
$7,34 Unit Price incl. VAT
46
Sprocket 13T
3221041
$83,99 Unit Price incl. VAT
47
PLUG OIL DRAIN Substituted by 3233448
3233028
$41,99 Unit Price incl. VAT
48
Washer
3233035
Not Available
49
CASE RH
3233003
Not Available
50
Deflector Oil
3233043
$21,20 Unit Price incl. VAT
51
DOG ENGAGEMENT HI/REV.
3233128
Not Available
52
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
53
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
54
SPROCKET 24T
3233127
Not Available
55
SHAFT OUTPUT
3233123
Not Available
56
GEAR 65T
3233130
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
