1
Engine displacement
500
2
Year
2005
3
Trim
RANGER 2X4,4X4,6X6 - R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB
4
Parts Catalog

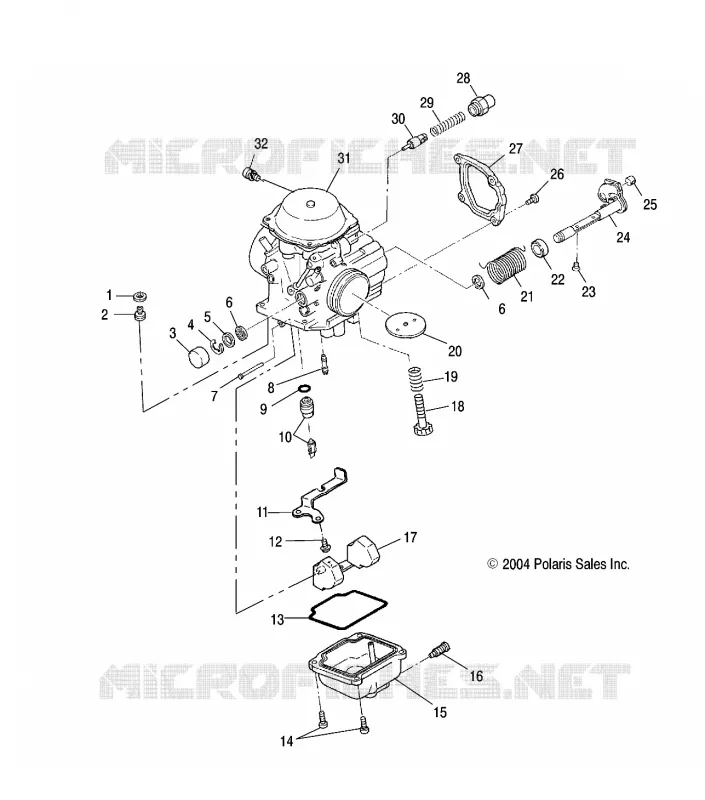

CARBURETOR
5
Parts Diagram
Parts Catalog
CYLINDER
by
STARTING MOTOR
CARBURETOR
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
1
WASHER
3130014
$3,14 Unit Price incl. VAT
2
Jet Main [#135][2x4]
3130563
$16,79 Unit Price incl. VAT
3
CAP
3130519
$19,94 Unit Price incl. VAT
4
E-Ring
3130518
$3,14 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SEAL
3130515
$20,99 Unit Price incl. VAT
7
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
8
JET PILOT #42.5 (#42.5)
3130526
$62,99 Unit Price incl. VAT
9
O-RING
3130533
$10,49 Unit Price incl. VAT
10
Valve Needle
3131361
Not Available
11
PLATE
3130594
$62,99 Unit Price incl. VAT
12
SCREW
3130591
$7,34 Unit Price incl. VAT
13
O-RING
3130532
$57,74 Unit Price incl. VAT
14
SCREW
3130520
$3,14 Unit Price incl. VAT
15
FLOAT BODY ASM
3131212
Not Available
16
SCREW
3130521
$18,89 Unit Price incl. VAT
17
FLOAT ASM.
3130529
$157,49 Unit Price incl. VAT
18
Screw Adjust
3131423
$41,99 Unit Price incl. VAT
19
SPRING
3130836
$15,74 Unit Price incl. VAT
20
VALVE THROTTLE (100)
3130502
$99,74 Unit Price incl. VAT
21
SPRING
3130589
$52,49 Unit Price incl. VAT
22
RING
3130514
$13,64 Unit Price incl. VAT
23
SCREW
3130501
$7,34 Unit Price incl. VAT
24
SHAFT ASM THROTTLE
3130513
$146,99 Unit Price incl. VAT
25
CABLE GUIDE MIKUNI BTM36/30
3130543
$62,99 Unit Price incl. VAT
26
SCREW
3130535
$13,64 Unit Price incl. VAT
27
COVER
3130511
$83,99 Unit Price incl. VAT
28
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
29
SPRING
3130538
$10,49 Unit Price incl. VAT
30
Asm. Plunger
3130539
$73,49 Unit Price incl. VAT
31
Asm. Carburetor [2x4][Incl. All Less 25-27]
3131519
$1 065,74 Unit Price incl. VAT
31
Asm. Carburetor [4x4][6x6][Incl. All Less 1 25-27 32]
3131441
$1 065,74 Unit Price incl. VAT
32
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
